Honeycomb Paperboard Laminator

Quantity:

Product Introduction

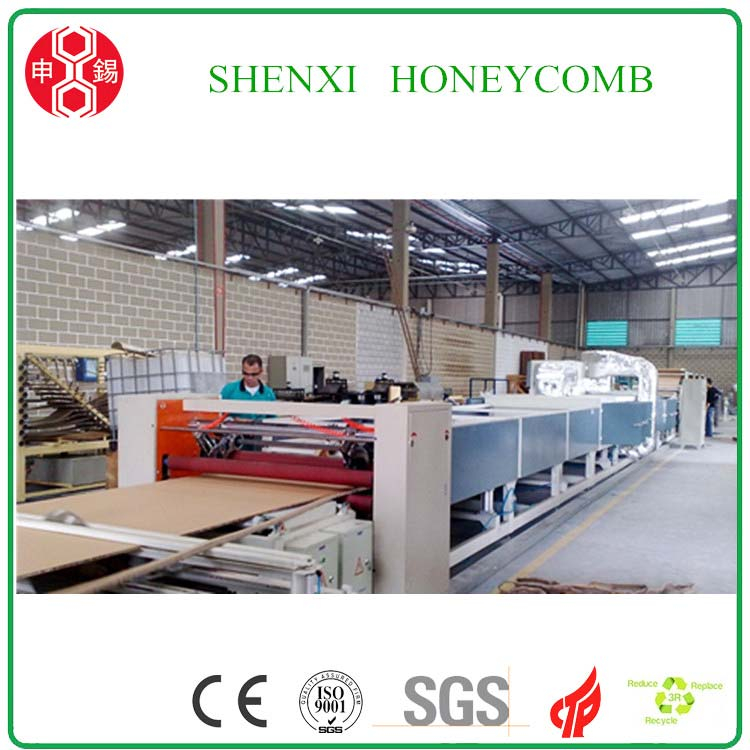

Wuxi Shenxi Honeycomb Machinery Factory, supplies honeycomb paperboard lamination line. Honeycomb lamination line makes the honeycomb paperboard from 8 to 100mm thickness automatically.  It can make 5000-8000 m2/ shift

Features

The paperboard cutting unit uses two servo motors to make it synchronized and cutting. Tolerance within 2mm/ m.
2.2 Belt press unit, worm screws adjust the height of upper press unit continuously and stable. The pressure can be adjusted by springs continuously.
2.3 Hot air circulation in the oven, increase the thermal efficiency.
2.4 Safety control system according to CE regulations
2.5 Paper will avoid the gluing roller while machine stops, easy to do the adjustment when machine’s on.
2.6 Apply glue on paper or honeycomb, both available.
2.7 Heating: steam, electricity, Hot oil all available.


No. Item HF(B)-1300   HF(B)-1600 HF(B)-1800
1 Thickness of honeycomb paperboard 6-100mm
2 Maximum width of paperboard (mm) 1300mm 1600mm 1800mm
3  cutting precision +-2mm
4 Length of honeycomb paperboard(after cutting) >=500mm
5 Applicable paper 180-420gms cardboard paper or Kraft paper
6 Layer of face paper 1
6 Maximum designing speed 20m/min
7 The actual production speed 6-12m/min.(According to the paper dry degreeGlue quality、paper core thicknessLocal humidity and other factors to change )
8 Heating drying method electrical heating/steam heating/hot oil heating
9 Total motor power 30KW
10 Electric heating power 120KW
11 Installation power 150kw
12 Man power 3-4
3-4
13 Layout

45000X4000X2500mm

Technical Data

No. Item HF(C)-1300   HF(C)-1600 HF(C)-1800
1 Thickness of honeycomb paperboard 8-100mm
2 Maximum width of paperboard (mm) 1300 1600 1800
3 Paperboard cutting precision +-2mm
4 Length of honeycomb paperboard(after cutting) >=500mm
5 Applicable paper 180-420gms cardboard paper or Kraft paper
6 Layer of face paper 2
7 Maximum designing speed 20m/min
8 The actual production speed 6-12m/min.(According to the paper dry degreeGlue quality、paper core thicknessLocal humidity and other factors to change )
9 Heating drying method electrical heating/steam heating/hot oil heating
10 Total motor power                        30KW
11 Electric heating power 120KW
12 Installation power 150kw
13 Man power 3-4
14 Layout 52000X4000X2500mm
