HF(B)1300/1600/1800/2000/2300
申锡
Product Description

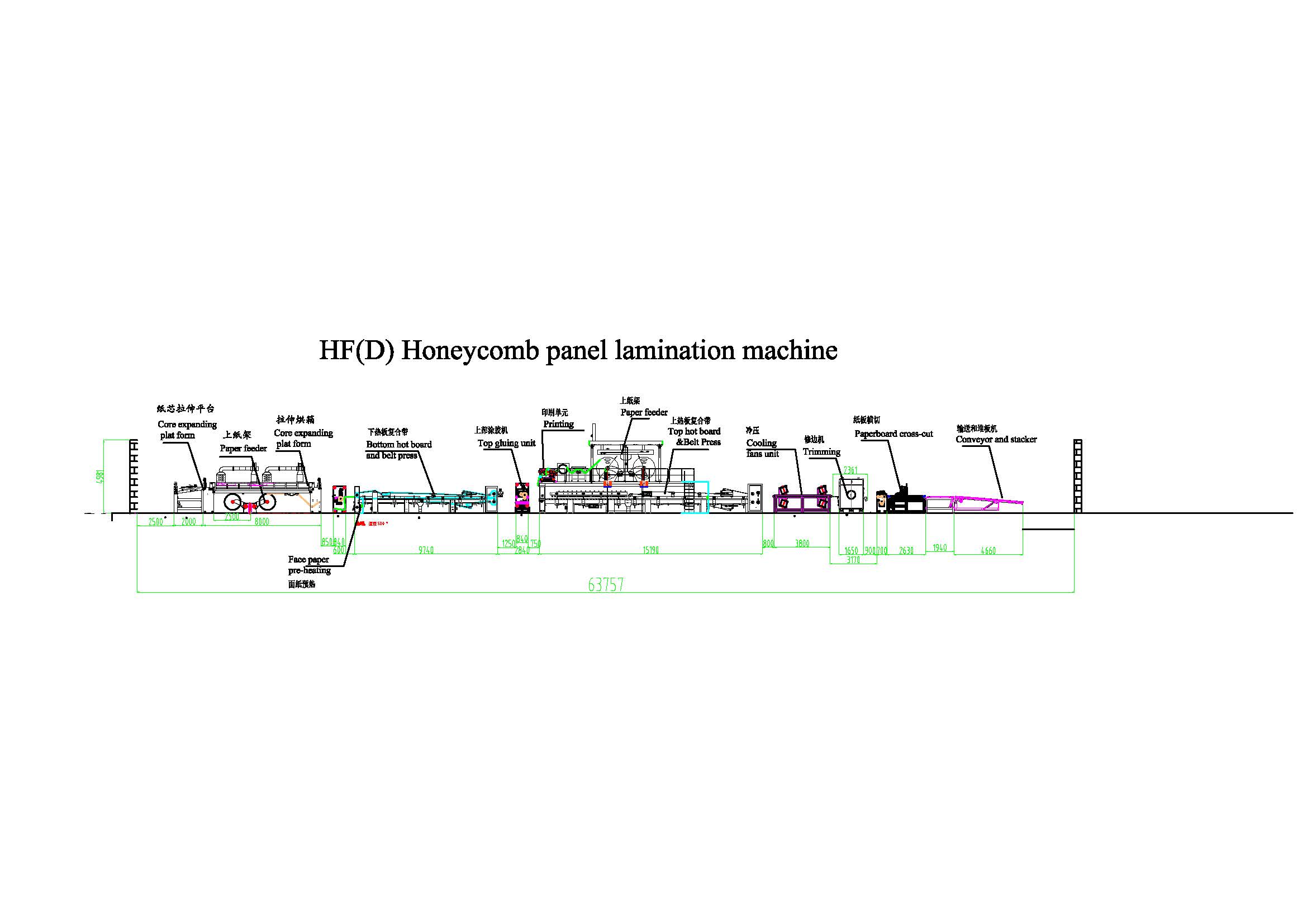

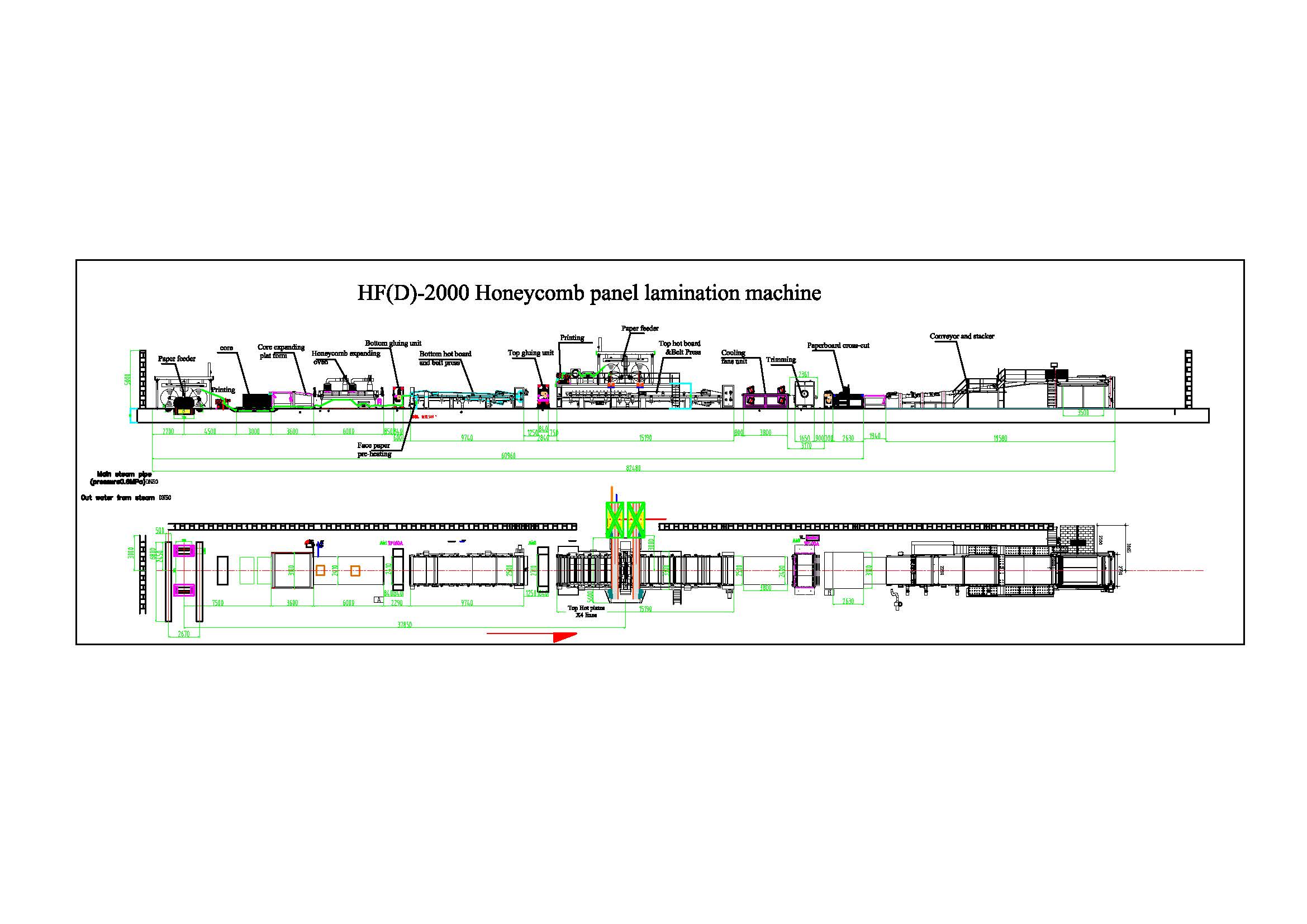

High speed Honeycomb Panel Lamination line
2.1.Description
HF(D) series is used to expand and laminate the honeycomb paper core from the HCM to form the honeycomb paperboards. It chooses the twice lamination procedure, apply glue and laminating with bottom paper and heating; after that, apply glue and laminating with top paper. The line speed will higher and panel will more dry.
2.2 Technical specification
No. | Item | HF(D)-1600/1800/2000/2300 |
1 | Thickness of honeycomb paperboard | 6-100mm |
2 | Maximum width of machine | 1600/1800/2000/2300mm |
3 | Cardboard cutting precision | +-2mm |
4 | Length of honeycomb paperboard(after cutting) | 500-3000mm |
5 | Applicable paper | 130-500gms cardboard paper or Kraft paper 130-500gms |
6 | Maximum designing speed | 45-60m/min |
7 | The actual production speed | Normal Lamination speed 16-30m/min |
8 | Heating drying method | Steam heating |
11 | Installation power | 100kw |
12 | Man power | 3-4 for normal working |
13 | Layout | 65000X4000X2000mm |
14 | Machine Weight | 70 tons |
15 | Power supply | 3 Ph. 380 V AC/50Hz |
16 | steam requirement | 0.5ton/h, pressure: 0.6MPa |
· Core performance parameters
· Capable of producing paper-based / plastic / composite honeycomb, with a thickness range of 5-100mm and a width range of 1.3-2.5m, with a hole size error of ≤ 0.1mm;
Fully automated process (controlled by PLC), requiring only 2-3 operators, with a maximum line speed of 30m/min, and a daily production capacity of 15,000㎡.
· Customer direct benefits
· Cost reduction: Utilization rate of raw materials reaches 95% (annual savings of 10-30 ten thousand), energy consumption is 20% lower than similar products, and labor costs are reduced by 36-57 ten thousand annually;
Quality improvement: Compressive strength is increased by 20%, qualification rate is ≥ 99%, and the competitiveness of the end product is enhanced.
· Applicable scenarios
· Packaging (replacing wooden boxes, cost reduction by 40%), construction (lightweight composite board, construction efficiency + 30%), furniture (damp-proof honeycomb core), transportation (automobile lightweight components).
· Technology and compliance
· 5 core patents, AI visual inspection; complies with EU environmental standards (EN 13432), formaldehyde ≤ 0.1mg/m³.
· Trust endorsement
· Benchmark customer cases from brands like Midea: Payback period within 6 months, damage rate reduced from 5% to 1%;
Customer evaluation: "No faults for 1 year, can accept small orders, repeat purchase rate + 30%".
· Service guarantee
· 45-day installation and commissioning + free training; core components have a 3-year warranty, on-site repair within 48 hours, and lifetime technical upgrade.
· Competitive advantages
· Production capacity is 50% higher than domestic equipment, price is 30% lower than imported; adapts to environmental protection trends (annual market demand increase by 15%).
