Honeycomb Board Machine

Description
HF(B) series lamination line is used to expand and laminate the honeycomb paper core from the HCM to form the honeycomb paperboards. It apply glue on honeycomb core or face paper at same time , top and bottom paper lamination with honeycomb core together.
Availability:
Quantity:
  • HF(B)1300/1600/1800/2000/2300

  • 申锡

Product Description

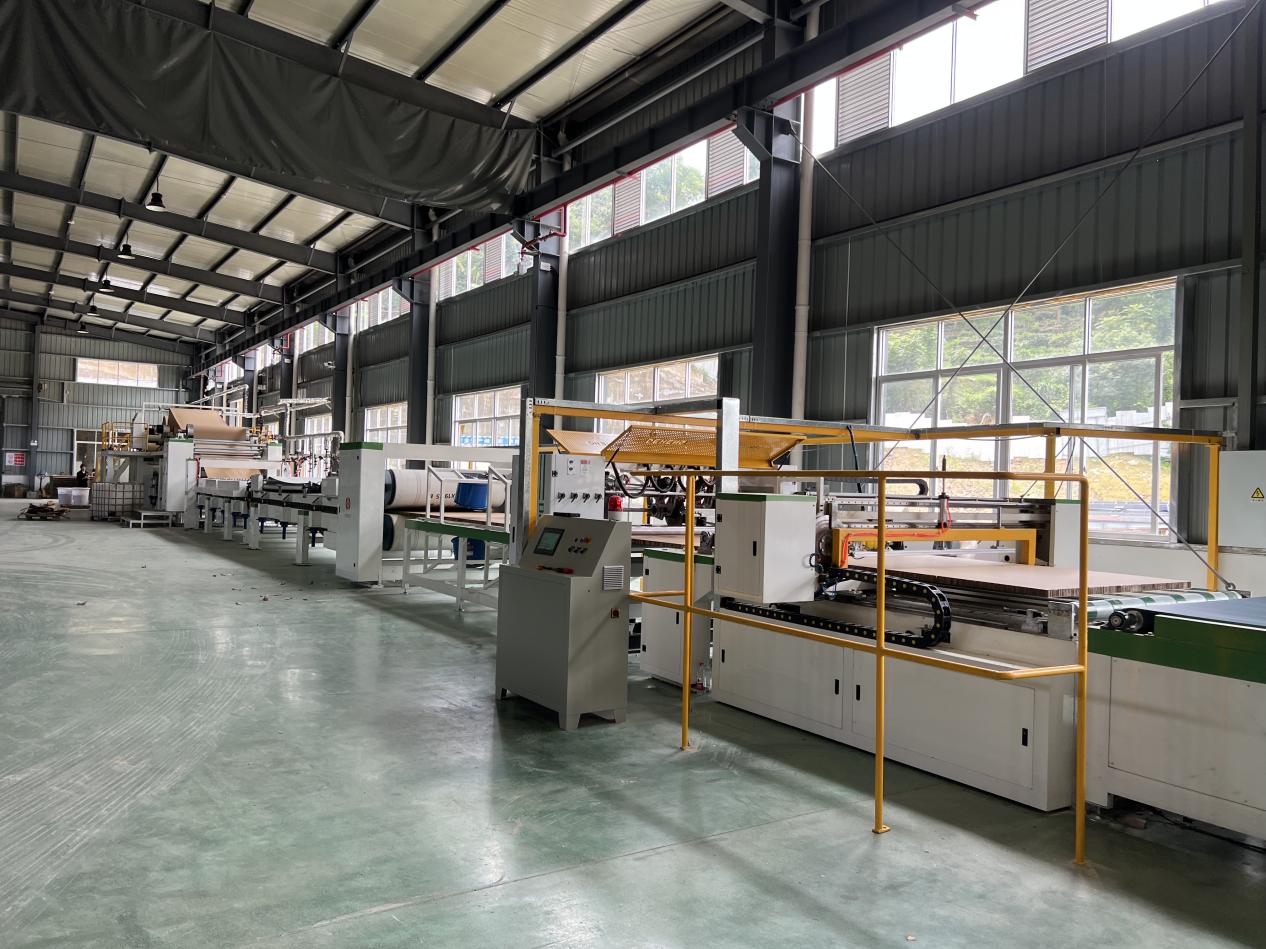

Honeycomb panel lamination machine

1.1.Description

HF(B) series lamination line is used to expand and laminate the honeycomb paper core from the HCM to form the honeycomb paperboards. It apply glue on honeycomb core or face paper at same time , top and bottom paper lamination with honeycomb core together.

1.2 Technical specification

No.

Item

HF(B)-1300/1600/1800/2000/2300

1

Thickness of honeycomb paperboard

6-100mm

2

Maximum width of machine


1300/1600/1800/2000/2300mm

3

Cardboard cutting precision

+-2mm

4

Length of honeycomb paperboard(after cutting)

>=500mm

5

Applicable paper

130-600gms  cardboard paper or Kraft paper 130-600gms

6

Maximum designing speed

30m/min

7

The actual production speed


Normal Lamination speed 12-15m/min (20mm thickness , 10mm cell size , PVA glue)

8

Heating drying method


electrical heating/ steam heatijng


9

Total motor power

60KW

10

Electric heating power

90KW

11

Installation power


Electric heating mode: 150kw

Steam heating mode: 80kw

12

Man power

3-4 for normal working


13

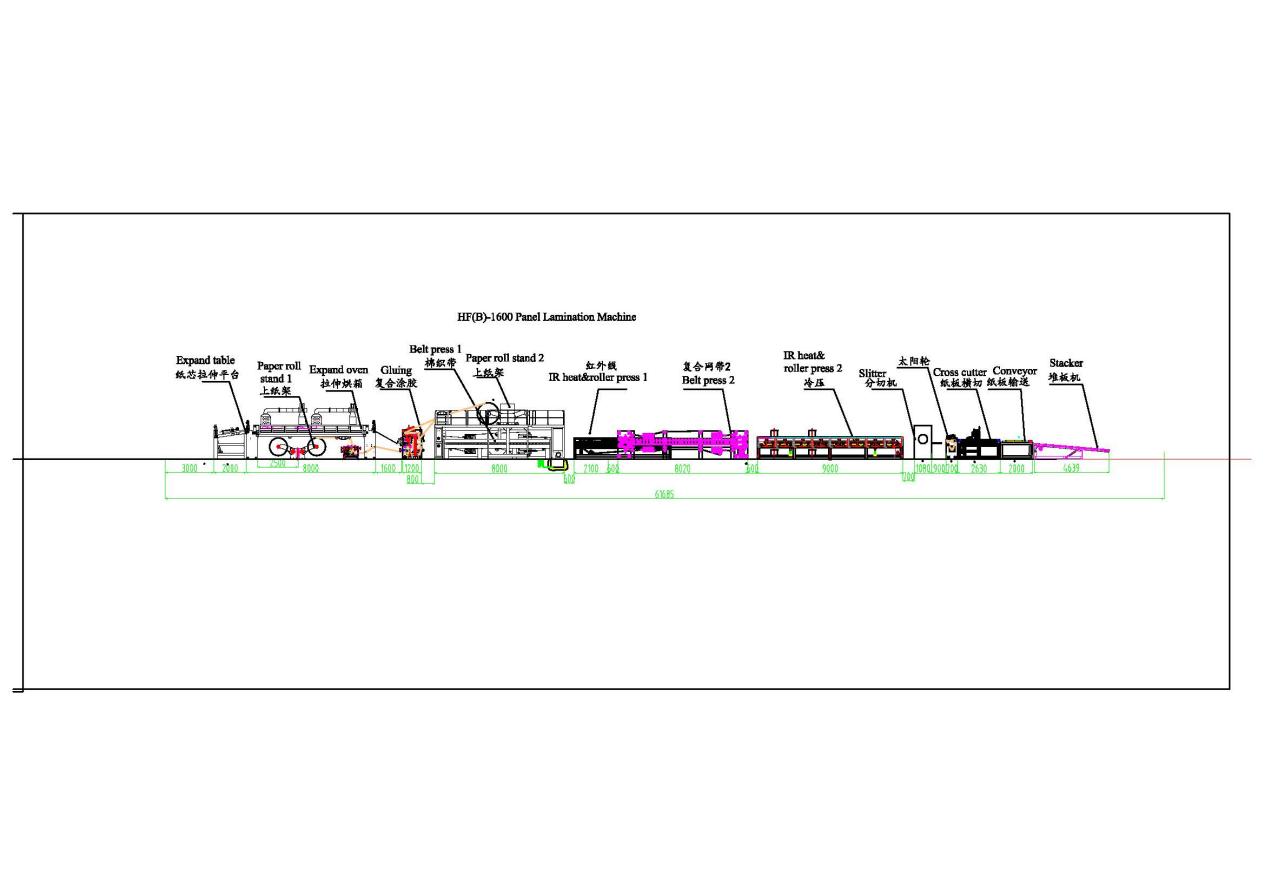

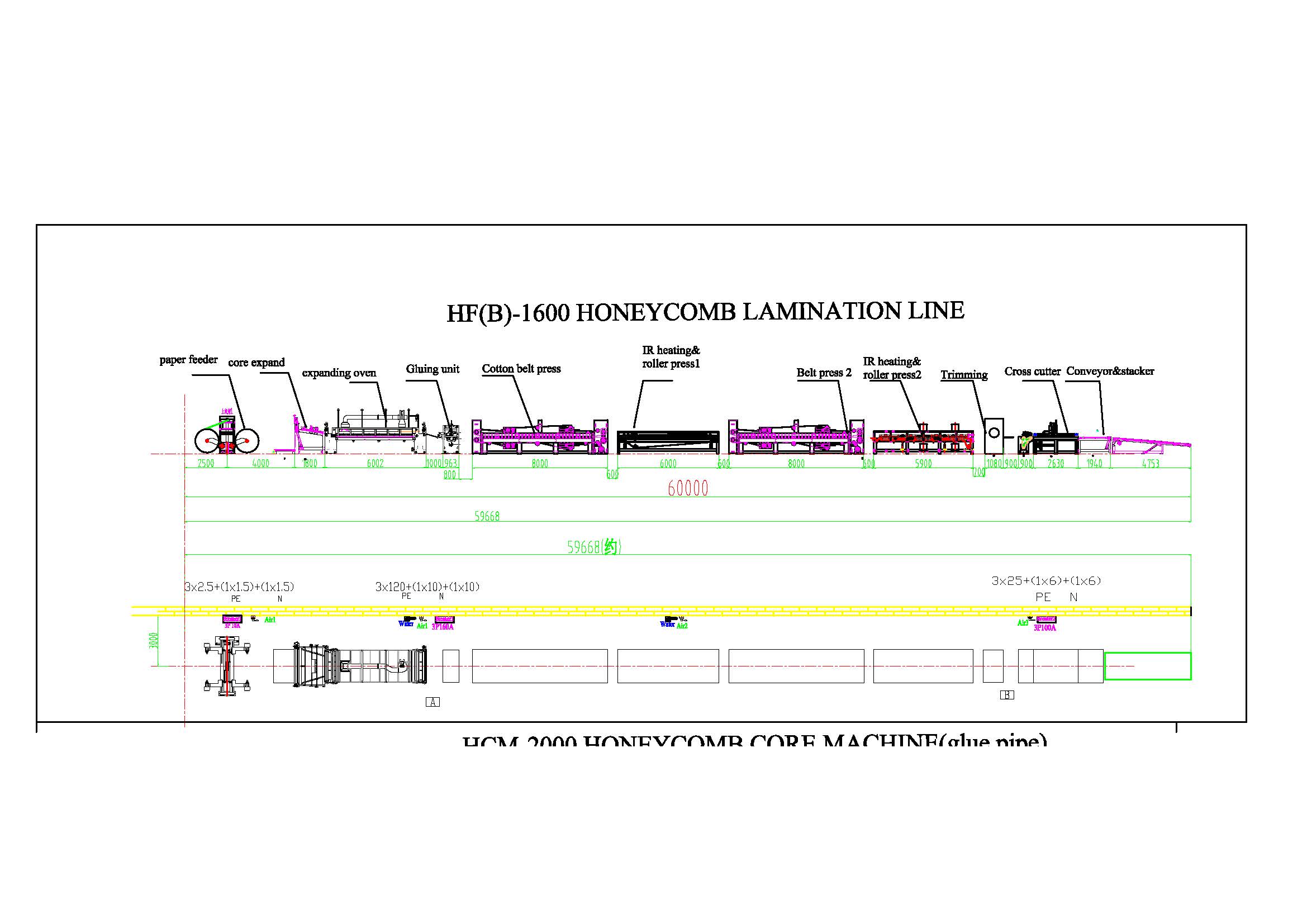

Layout

60000X4000X2000mm

14

Machine Weight

40 tons

15

Power supply

3 Ph. 380 V AC/50Hz ( can be special made )


· Core performance parameters

· Capable of producing paper-based / plastic / composite honeycomb, with a thickness range of 5-100mm and a width range of 1.3-2.5m, with a hole size error of ≤ 0.1mm;

 Fully automated process (controlled by PLC), requiring only 2-3 operators, with a maximum line speed of 30m/min, and a daily production capacity of 15,000㎡.

· Customer direct benefits

· Cost reduction: Utilization rate of raw materials reaches 95% (annual savings of 10-30 ten thousand), energy consumption is 20% lower than similar products, and labor costs are reduced by 36-57 ten thousand annually;

 Quality improvement: Compressive strength is increased by 20%, qualification rate is ≥ 99%, and the competitiveness of the end product is enhanced.

· Applicable scenarios

· Packaging (replacing wooden boxes, cost reduction by 40%), construction (lightweight composite board, construction efficiency + 30%), furniture (damp-proof honeycomb core), transportation (automobile lightweight components).

· Technology and compliance

· 5 core patents, AI visual inspection; complies with EU environmental standards (EN 13432), formaldehyde ≤ 0.1mg/m³.

· Trust endorsement

· Benchmark customer cases from brands like Midea: Payback period within 6 months, damage rate reduced from 5% to 1%;

 Customer evaluation: "No faults for 1 year, can accept small orders, repeat purchase rate + 30%".

· Service guarantee

· 45-day installation and commissioning + free training; core components have a 3-year warranty, on-site repair within 48 hours, and lifetime technical upgrade.

· Competitive advantages

· Production capacity is 50% higher than domestic equipment, price is 30% lower than imported; adapts to environmental protection trends (annual market demand increase by 15%).
