Product Description
1.1 Production introduction

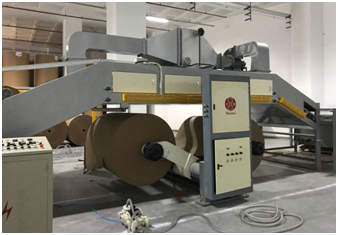

Wuxi Shenxi Honeycomb Machinery Factory, supplies honeycomb paperboard lamination line. Honeycomb lamination line makes the honeycomb paperboard from 8 to 100mm thickness automatically. It can make 5000-8000 m2/ shift.
1.2 Supply list
No | Name | Technical specifications | Qty |
1 | Paper feeder
| The structure is double rotary shafts with four arms, support two paper mill rolls on both arms at the same time. Effective width:800-2000mm; max. paper roll diameter: Φ1400mm.
| 1 |
2 | Core expanding platform | Honeycomb input width (before expanding): 1500-2150mm
| 1 |
3 | Heating method : steam heating /electric heating, Electric pipe heating into 2 groups
| 1 | |
4 | Gluing machine | 1. Glue applicator roller & doctor roller: surface is wrapped with rubber, even glue supply and durable. 2. Doctor roller: 76mm diameter, rubber roller. Anti-rust.
| 1 |
5 | Green Belt Press | 1. Edge of Conveying belt(Rubber belt) to ensure the paper board pass through the middle of this unit, press paperboard evenly while conveying. 2. Speed of Conveyor belt is controlled by frequency inverter. | 2 |
6 | Hot board | 1. Hot board, 25mm thickness aluminum panel on both top and bottom 2. Temp. : ~ 120 celsius degree, controlled automatically.
| 1 |
7 | Paperboard oven | 1. Heating method: Steam heating/ electric heating, heating box fixed outside oven, centrifugal fan pump in the hot air into the oven, hot air circulation. 2. Heating power(electric heating):36kw
| 1 |
8 | Cold press | 1.Cooling method：8 sets of axial fans force to cool the fresh paperboard oven ,increase the its hardness 2.length:9000mm
| 1 |
9 | Trimming& waste collecting system | Including one slitting machine+ one chopping blower + necessary pipes
| 1 |
10 | Paperboard cross-cut | 1.Cutting length controlled by the encoder (length can be set on the touch screen), length cutting : 500-4000mm 2.Max. Cutting height: 150mm
| 1 |
10 | Power Supply box | 1.Building frames on top of machine, to fix the tables and trunking and Cables; wiring clean and safe is reasonable, maintenance is convenient 2.Touch screen operation displays and setting, PLC system control 3.Electric control components all adopt schneideromron and delta sets of products | 1 |
FAQ:
Q. What payment terms do you accept?
A. 30% TT as down payment, 70% TT pay before shippment.
Q.How long is your delivery time?
A. Normally 60-90 days .
Q.Which port is your main loading port?
A.Shanghai port
