High speed honeycomb lamination line

.Description
HF(D) series is used to expand and laminate the honeycomb paper core from the HCM to form the honeycomb paperboards. It chooses the twice lamination procedure, apply glue and laminating with bottom paper and heating; after that, agpply glue and laminating with top paper. The line speed will higher and panel will more dry.
HF(D)系列用于将蜂窝纸芯从纸芯机上拉伸、复合,形成蜂窝纸板。采用二次复膜工艺,涂胶复膜,底纸加热; 然后涂上胶水,用顶纸复合。生产线速度会更高,面板会更干燥。
Availability:
Quantity:
  • HF(B)1300/1600/1800/2000/2300

  • 申锡

Product Description

High speed Honeycomb Panel Lamination line(蜂窝纸板高速线)

2.1.Description

HF(D) series is used to expand and laminate the honeycomb paper core from the HCM to form the honeycomb paperboards. It chooses the twice lamination procedure, apply glue and laminating with bottom paper and heating; after that, agpply glue and laminating with top paper. The line speed will higher and panel will more dry.

HF(D)系列用于将蜂窝纸芯从纸芯机上拉伸、复合,形成蜂窝纸板。采用二次复膜工艺,涂胶复膜,底纸加热; 然后涂上胶水,用顶纸复合。生产线速度会更高,面板会更干燥。

IMG_7896

2.2 Technical specification

No.

Item 项目

HF(D)-1600/1800/2000/2300

1

Thickness of honeycomb paperboard

蜂窝纸板厚度

6-100mm

2

Maximum width of machine

最大纸板宽度

1600/1800/2000/2300mm

3

Cardboard cutting precision

纸板裁切精度

+-2mm

4

Length of honeycomb paperboard(after cutting)

蜂窝纸板长度(裁切后)

500-3000mm

5

Applicable paper

适用纸张

130-500gms cardboard paper or Kraft paper

130-500gms 箱纸板或者牛皮纸

6

Maximum designing speed

最大设计速度

45-60m/min

7

The actual production speed

实际生产速度

Normal Lamination speed 16-30m/min

正常复合速度 16-30m/min

8

Heating drying method

加热烘干方式

Steam heating

蒸汽加热

11

Installation power

装机功率

100kw

12

Man power

操作人员

3-4 for normal working

正常开机3-4人

13

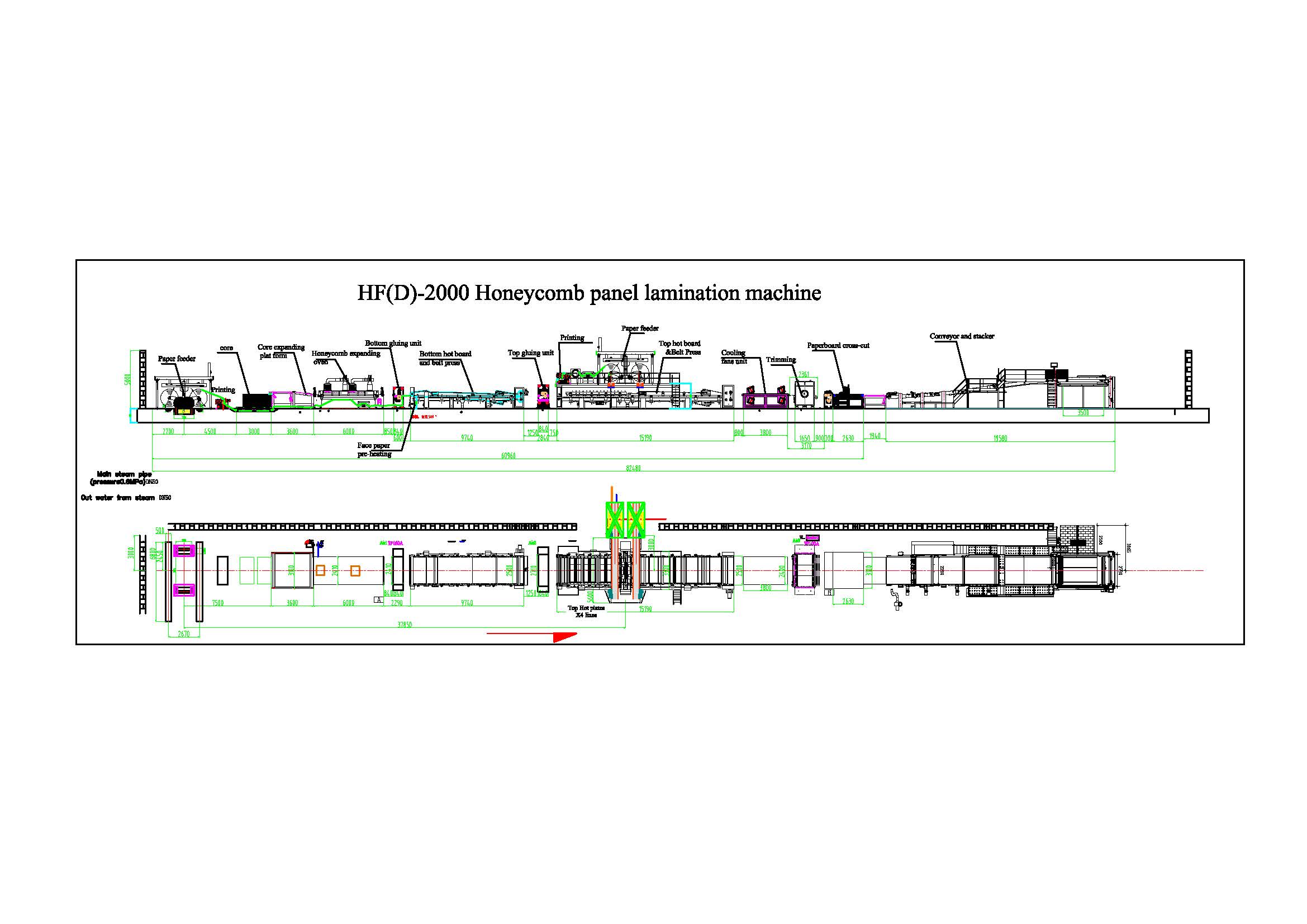

Layout

布局尺寸

65000X4000X2000mm

14

Machine Weight

设备重量

70 tons

15

Power supply

标准用电

3 Ph. 380 V AC/50Hz


steam requirement

蒸汽要求

0.5ton/h, pressure: 0.6MPa

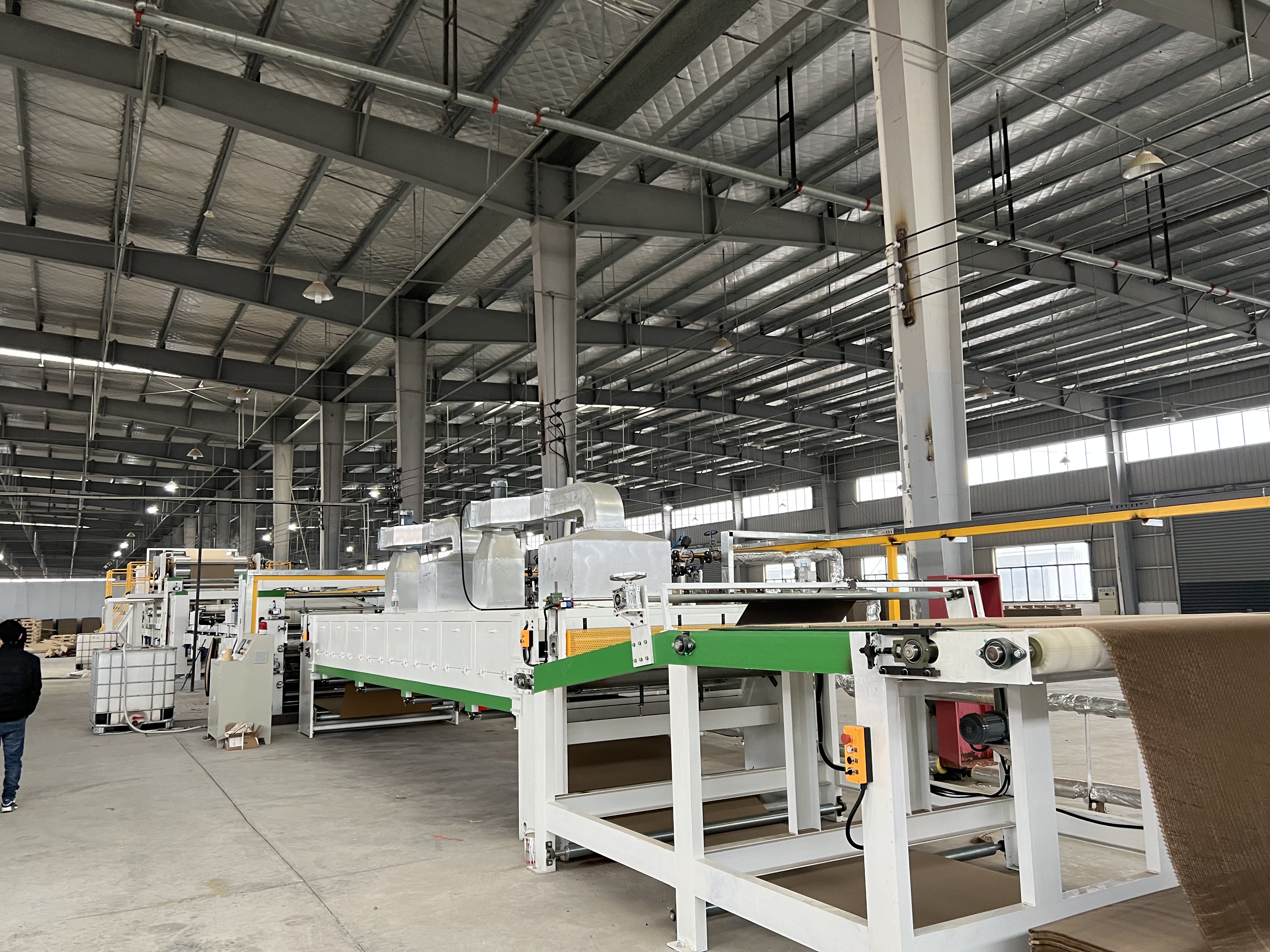

高速纸板线高速纸板线2
