Standard High Speed Honeycomb Paperboard Laminator
You are here: Home » Honeycomb Machine » Honeycomb board laminating machine » Standard High Speed Honeycomb Paperboard Laminator
Share to:

Standard High Speed Honeycomb Paperboard Laminator

Quantity:
  • Shenxi

Product Introduction

1.1 Production introduction

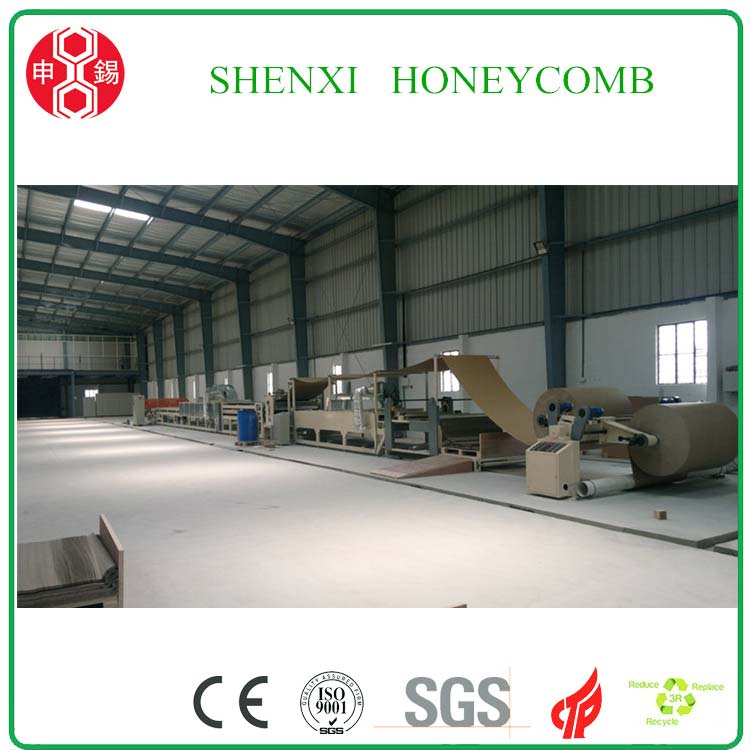

Wuxi Shenxi Honeycomb Machinery Factory, supplies honeycomb paperboard lamination line. Honeycomb lamination line makes the honeycomb paperboard from 8 to 100mm thickness automatically.  It can make 5000-8000 m2/ shift


1.2 Supply list

No

Name

Technical   specifications

Qty

1

Paper   feeder



The   structure is double rotary shafts with four arms, support two paper mill   rolls on both arms at the same time.

Effective   width:800-2000mm; max. paper roll diameter: Φ1400mm.

 Honeycomb Paperboard Lamination Machine

1

2

Core   expanding platform

Honeycomb input width (before expanding): 1500-2150mm

 Honeycomb Paperboard Lamination Machine

1

3

Core   conveying expand drying unit

Heating method : steam heating   /electric heating, Electric pipe heating    into 2  groups

honeycomb paperboard lamination machine


1

4

Gluing   machine

1. Glue   applicator roller &  doctor roller:   surface is wrapped with rubber,  even   glue supply and durable.

2.  Doctor   roller: 76mm diameter, rubber roller. Anti-rust.

honeycomb paperboard lamination machine


1

5

Green   Belt Press

1.         Edge   of Conveying belt(Rubber belt) to ensure the paper board pass through   the middle of this unit, press paperboard evenly while conveying.

2.  Speed of Conveyor belt is controlled by frequency inverter.honeycomb paperboard lamination machine

2

6

Hot   board

1. Hot  board, 25mm thickness   aluminum panel on both top and bottom

2. Temp. : ~ 120 celsius degree, controlled automatically.

honeycomb paperboard lamination machine

1

7

Paperboard   oven

1. Heating method: Steam heating/ electric heating, heating box fixed   outside oven, centrifugal fan pump in the hot air into the oven, hot air   circulation.

2.  Heating power(electric   heating):36kw

honeycomb paperboard lamination machine

1

8

Cold   press

1.Cooling method8 sets of axial fans force to cool the fresh paperboard oven ,increase   the its hardness

2.length:9000mm

honeycomb paperboard lamination machine

1

9

Trimming& waste collecting system

Including one slitting machine+ one   chopping blower + necessary pipes

honeycomb paperboard lamination machine

1

10

Paperboard   cross-cut

1.Cutting length controlled by the encoder (length can be set on the   touch screen), length cutting : 500-4000mm

2.Max. Cutting height: 150mm

honeycomb paperboard lamination machine

1

10

Power   Supply box

1.Building frames on top of machine, to fix the tables and trunking   and Cables;  wiring clean and safe is   reasonable, maintenance is convenient

2.Touch screen operation displays and setting, PLC system control

3.Electric control components all adopt schneideromron and delta sets   of products

1



Features

The paperboard cutting unit uses two servo motors to make it synchronized and cutting. Tolerance within 2mm/ m.
2.2 Belt press unit, worm screws adjust the height of upper press unit continuously and stable. The pressure can be adjusted by springs continuously.
2.3 Hot air circulation in the oven, increase the thermal efficiency.
2.4 Safety control system according to CE regulations
2.5 Paper will avoid the gluing roller while machine stops, easy to do the adjustment when machine’s on.
2.6 Apply glue on paper or honeycomb, both available.
2.7 Heating: steam, electricity, Hot oil all available.


No. Item HF(B)-1300   HF(B)-1600 HF(B)-1800
1 Thickness of honeycomb paperboard 6-100mm
2 Maximum width of paperboard (mm) 1300mm 1600mm 1800mm
3  cutting precision +-2mm
4 Length of honeycomb paperboard(after cutting) >=500mm
5 Applicable paper 180-420gms cardboard paper or Kraft paper
6 Layer of face paper 1
6 Maximum designing speed 20m/min
7 The actual production speed 6-12m/min.(According to the paper dry degreeGlue quality、paper core thicknessLocal humidity and other factors to change )
8 Heating drying method electrical heating/steam heating/hot oil heating
9 Total motor power 30KW
10 Electric heating power 120KW
11 Installation power 150kw
12 Man power 3-4
3-4
13 Layout

45000X4000X2500mm

Technical Data

No. Item HF(C)-1300   HF(C)-1600 HF(C)-1800
1 Thickness of honeycomb paperboard 8-100mm
2 Maximum width of paperboard (mm) 1300 1600 1800
3 Paperboard cutting precision +-2mm
4 Length of honeycomb paperboard(after cutting) >=500mm
5 Applicable paper 180-420gms cardboard paper or Kraft paper
6 Layer of face paper 2
7 Maximum designing speed 20m/min
8 The actual production speed 6-12m/min.(According to the paper dry degreeGlue quality、paper core thicknessLocal humidity and other factors to change )
9 Heating drying method electrical heating/steam heating/hot oil heating
10 Total motor power                        30KW
11 Electric heating power 120KW
12 Installation power 150kw
13 Man power 3-4
14 Layout 52000X4000X2500mm
