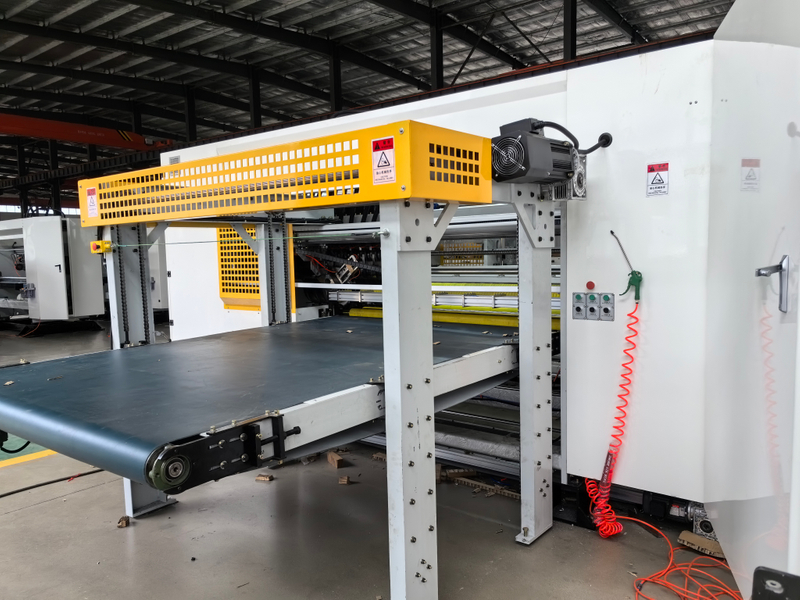

Slitting and Cross Machine

Automatic mini cutting line

1.Introduction

This line consists of two parts. Part 1 is longitudinal cutting (slitting unit) , part 2 is cross cutting.

The big honeycomb panel passed through slitting unit, to cut the panels into long & narrow pieces board.

Then to part 2, cross cutting unit. Take the long & narrow pieces of honeycomb board, feed by servo motor to cutting area, feed distance each time is decided by servo motor, set on HMI.

This machine can cut 1200X1200mm panel into 60X60mm automatically in one stop.

这台由两部分组成。第一部分是纵向切割(分切单元)，第二部分是横向切割。

大蜂窝板通过分切机，将面板切割成长片和窄片板。

然后到第二部分，横切单元。取蜂窝板长片和窄片，由伺服电机送入裁切区，每次的进给距离由伺服电机决定，在人机界面上设定。

本机可一次自动将1200X1200mm的面板切割成60X60mm。

2. Honeycomb panel slitting&cross cutting machine

Model:  BDFQJ-1600

型号

Maximum cutting width 1600mm

最大切割宽度

Max. Input length: 2200mm

最大进料纸板宽度

Min. Input length:800mm

最小进料纸板宽度

Minimum slitting width 60mm (16 longitudinal cutters, in two shafts),

最小分切宽度是60mm(16片刀，双排刀)

minimum cross cutting length 20mm (1 transverse cutter),

最小横切宽度是20mm

cutting accuracy ± 1mm (double servo drive)

横切误差： ± 1mm

Cutting thickness 6-100mm (with new blades it can cut 100mm)

分切厚度范围:6-100mm

Slitting knife diameter: diameter 380mm

刀片直径：380mm

Cross cutting knife: diameter 420mm

横切刀片直径：420mm

Feed in: automatic feed in

进料：自动进料

Total power: 16kw,

总功率：16 KW

total weight: 3.8t

总重：3.7T

Cutting speed: 10-60m/min.

切割速度: 10-60m/min.

Cutting capacity: 100 pcs/min  (size 100x50 mm.)

切割效率：100 pcs/min  (size 100x50 mm.)

A:  max-min  1600-500mm

B:  max-min  2200-800mm

C:  max-min  85-10mm

D:  max-min  15

E:  min  60mm ( average cutting) 50mm (not average cut, 50/70mm)

F: min  25mm
