Product Description

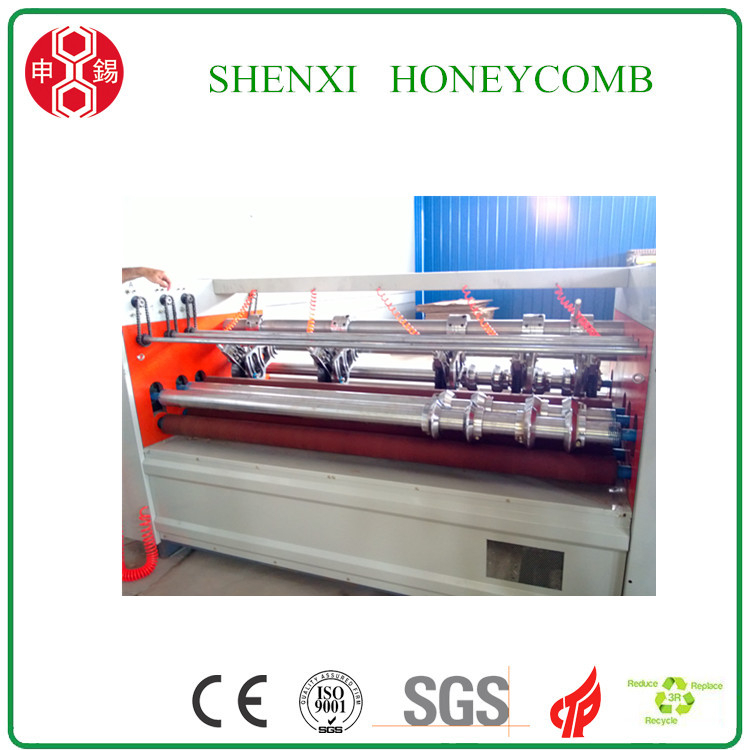

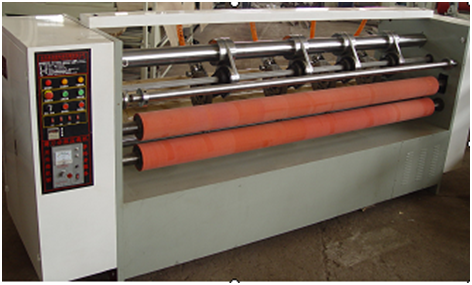

Honeycomb Panel Paper Slitting Machine
Description :
Machine width varies from 1800-2800mm

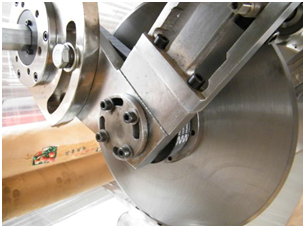

Blades fixed in one shaft, two shafts, max. Four shafts, cut 30mm width honeycomb panel one time
Two slitting machine can also be connected together, workign in same pace and cut the honeycomb panel within 100X100mm.
Air cylinder lift up and down
Techinical parameter:
No | Item | Spec. | Remarks |
1 | Model | BDFQJ-2500 | |
2 | Width of passing paper board | 2500mm | |
3 | Max. Board thickness: | 100mm
| |
4 | Min. board length | 600 | |
5 | Speed of paper board | 80-180m/min. | |
6 | No. Of knives | 4 | |
Knife shafts | 2 | ||
7 | Min.slitting width | 60mm | |
8 | Diameter of knife | 350/380mm | |
9 | Thickness of blade | 2mm | |
10 | Motor power | 5.5kw, 380V/50Hz | |
11 | Balde sharpening | Automatic sharpening | |
12 | Weight of machine | 1200kg |
