Product Description

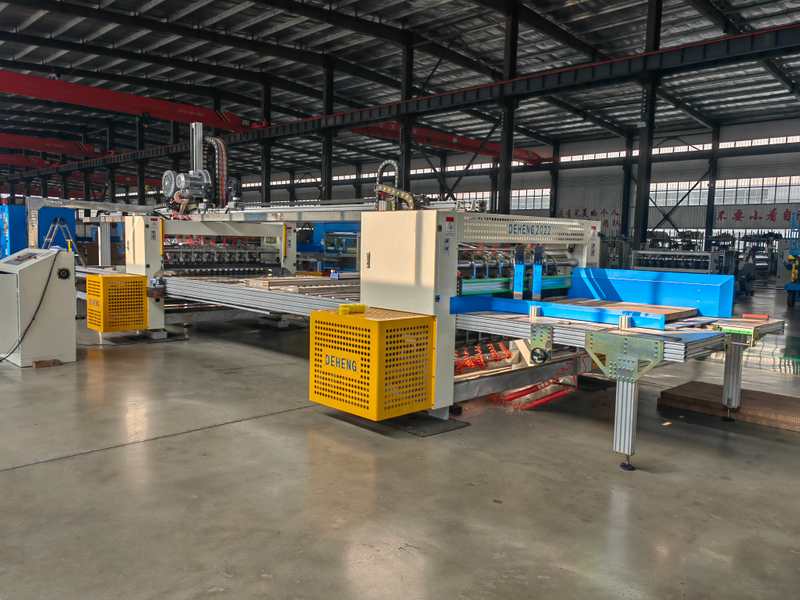

2, Honeycomb panel slitting &cross cutting machine
（For IKEA pallet feet）
This machine is special design for IKEA pallet feet cutting. IKEA pallet feet only has 3 sizes: 180x90x50mm, 140x90x50mm, 90x90x50mm. In this line, the 1st slitter cut 90 or 140 or 180mm (three widths) width always, and then robot hand 1 will take the long&narrow pieces and then rotate 90 degree, and then feed into the 2nd slitter to slit 90mm and then picked up by 2nd robot hand and put on pallet.
本机是专门为宜家托盘脚切割而设计的。宜家托盘脚只有3种尺寸:180x90x50mm, 140x90x50mm, 90x90x50mm。在这条生产线上，第一个分切机总是切割90或140或180mm(三种宽度)的宽度，然后机械手1将长片和窄片取出，然后旋转90度，然后送入第二个分切机切割90mm，然后由第二个机械手拿起并放在托盘上。
Max size : 1200x1300 for palletising
Model: FW—2000
Slitter 1
No. Of knives in each slitting machine: 15
刀片数量：15片
Max. Board thickness:(280mm blade to make )40-80mm
切割厚度：40-80mm，280mm直径的刀片
(over 60mm thickness, should change blade)超过60mm 厚度需要更换刀片
Automatic (pneumatic) feeding自动送料
Slitting width set: manual setting (only 90,140,180mm three sizes)
刀片宽度调节：手动
Maximum cutting width ：1300mm
最大分切纸板宽度：1300mm
Minimum cutting width :50 mm
最小分切宽度 :50 mm
cutting accuracy ± 2mm
分切误差： ± 2mm
Maximum cutting length ：800mm
最大分切宽度：800mm
Language: English & Chinese version.
Slitter 2
No. Of knives in each slitting machine: 15
刀片数量：15片
Max. Board thickness:(280mm blade to make )40-80mm
切割厚度：40-80mm，280mm直径的刀片
(over 60mm thickness, should change blade)
超过60mm 厚度需要更换刀片
Automatic(dual-servo) feeding 自动送料
Slitting width set: manual setting (only 90mm one size)
刀片宽度调节：手动
Maximum cutting width ：1300mm
最大分切纸板宽度：1300mm
Minimum cutting width :90 mm
最小分切宽度：90mm
cutting accuracy ± 2mm
分切误差： ± 2mm
