High Speed Honeycomb Paper Panel Slitting Machine
You are here: Home » Honeycomb related Equipment » Paper products converting machine » High Speed Honeycomb Paper Panel Slitting Machine
Share to:

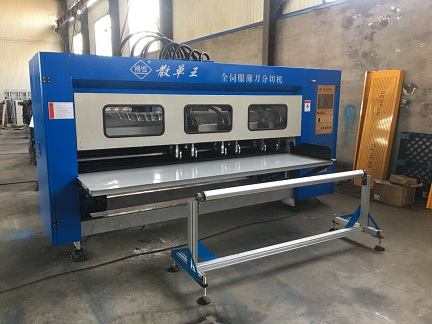

High Speed Honeycomb Paper Panel Slitting Machine

This honeycomb paperboard slitting machine is used to cut the honeycomb board into required size, this is the basic machine to convert the honeycomb panel into boxes, pallets. Etc.

Quantity:
  • BDFQJ-2500
  • Shenxi

Product Description


Production introduction
This honeycomb paperboard slitting machine is used to cut the honeycomb board into required size, this is the basic machine to convert the honeycomb panel into boxes, pallets. Etc.

Features:
Machine width varies from 1800-2800mm



No Item Spec. Remarks
1 Model BDFQJ-2500
2 Width of passing paper board 2500mm
3 Max. Board thickness: 100mm


4 Min. board length 600
5 Speed of paper board 80-180m/min.
6 No. Of  knives 4
  Knife shafts 2
7 Min.slitting width 60mm
8 Diameter of  knife 350/380mm
9 Thickness of blade 2mm
10 Motor power 5.5kw, 380V/50Hz
11 Balde sharpening Automatic sharpening
12 Weight of machine 1200kg

Honeycomb Paperboard Slitting Machine
