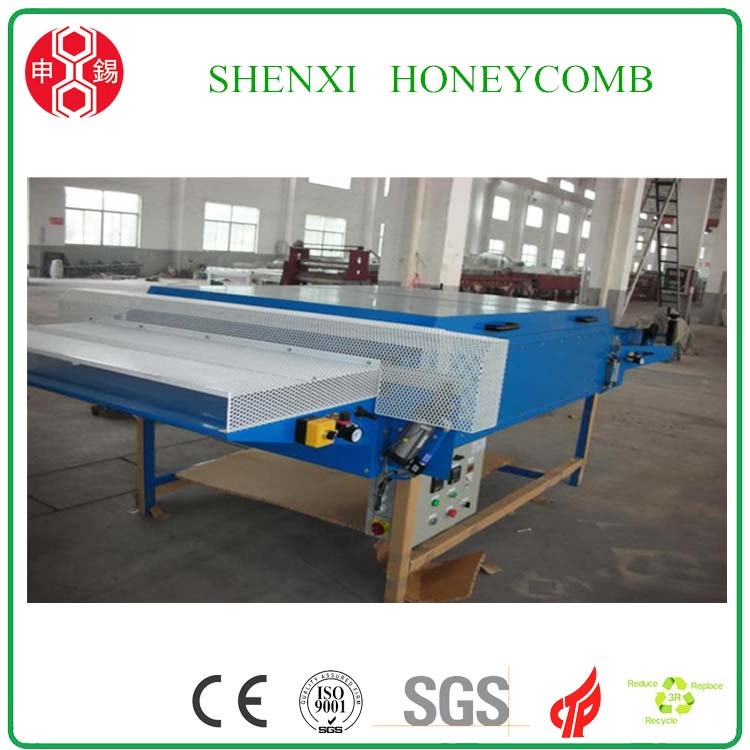

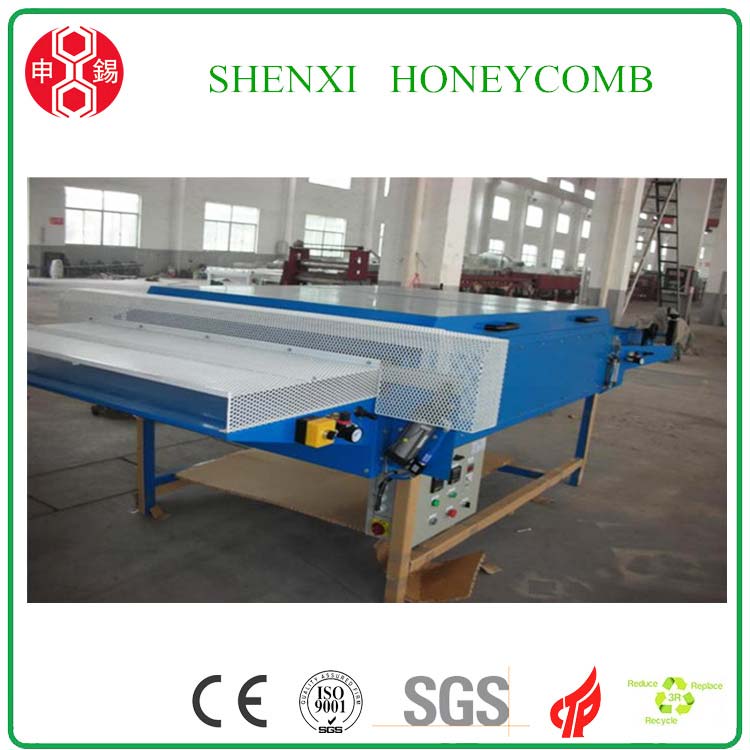

Honeycomb Expanding machine

Quantity:

Product Introduction

Honeycomb Expanding machine, which is used to open the honeycomb core . This kind of honeycomb core is widely used in furniture and door industry, as the inside filler of sandwich panels.

Technical Data

Type HEM-1450-D HEM-1450-B
Effective width of core paper(expanded) 0-1400mm
Function

Expanding , heating, trim,calibrating and Cutting, Expanding ,heating,  calibrating, and Cutting
Speed 0.6-4m/min
Honeycomb core feeding in the ove Chain with needles take and drive honeycomb core beginning to cutting
Largest Input width 1800mm
Largest Output width 1400mm
Thickness of honeycomb 10-70mm
Paper 120-180g/m2
Cell size 5-40mm
Temperature control Control automatically
Heating power 18kw
Motor power 2.2kw 0.2kw
Trim cut Available None
Trim blades qty 3 0
Installation power 20.2kw 18.2kw
Control PLC (Delta) system
Dimension 4600X2200X1300mm 4300X2200X1350mm
Weight 1000kg 800kg
Air supply 4-6kg/cm3
Voltage 3~, 380V/50Hz
