Product Description

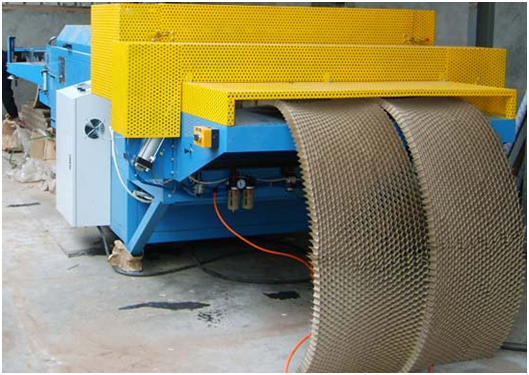

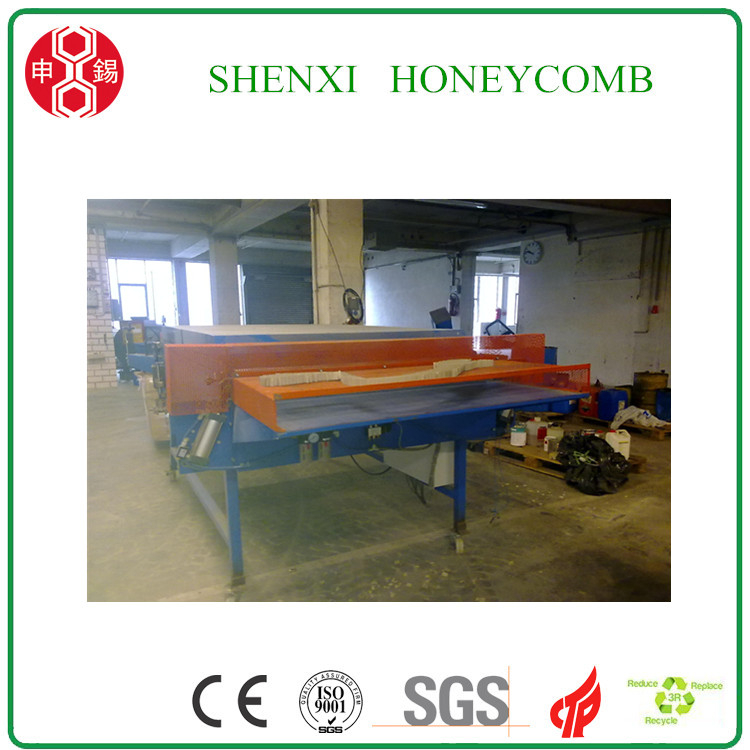

Full Automatic Honeycomb Paper Expanding Machine
Description:
Honeycomb Expanding machine, which is used to open the honeycomb core . This kind of honeycomb core is widely used in furniture and door industry, as the inside filler of sandwich panels.
Technical parameter:
Type | HEM-1450-D | HEM-1450-B |
Effective width of core paper(expanded) | 0-1400mm | |
Function
| Expanding , heating, trim,calibrating and Cutting, | Expanding ,heating, calibrating, and Cutting |
Speed | 0.6-4m/min | |
Honeycomb core feeding in the ove | Chain with needles take and drive honeycomb core beginning to cutting | |
Largest Input width | 1800mm | |
Largest Output width | 1400mm | |
Thickness of honeycomb | 10-70mm | |
Paper | 120-180g/m2 | |
Cell size | 5-40mm | |
Temperature control | Control automatically | |
Heating power | 18kw | |
Motor power | 2.2kw | 0.2kw |
Trim cut | Available | None |
Trim blades qty | 3 | 0 |
Installation power | 20.2kw | 18.2kw |
Control | PLC (Delta) system | |
Dimension | 4600X2200X1300mm | 4300X2200X1350mm |
Weight | 1000kg | 800kg |
Air supply | 4-6kg/cm3 | |
Voltage | 3~, 380V/50Hz | |
