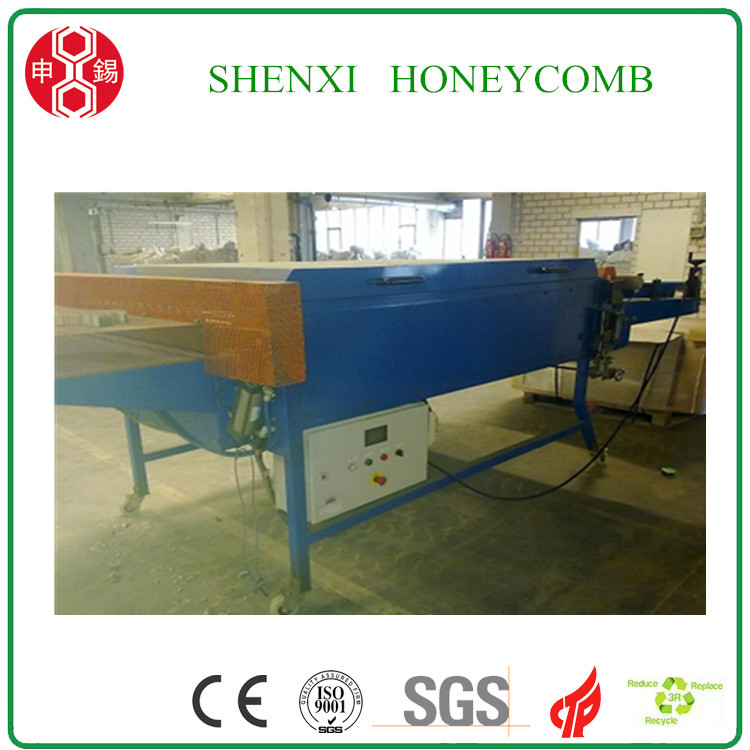

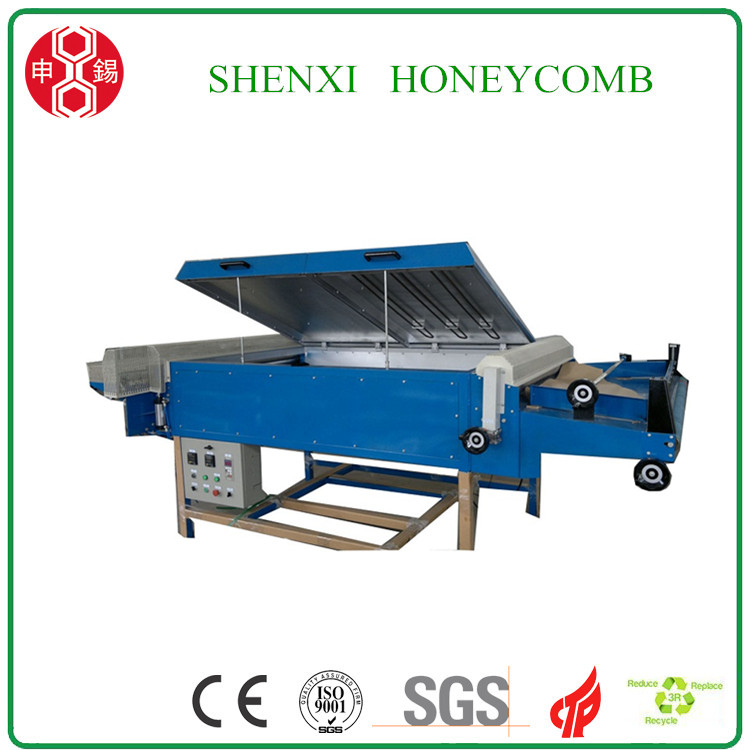

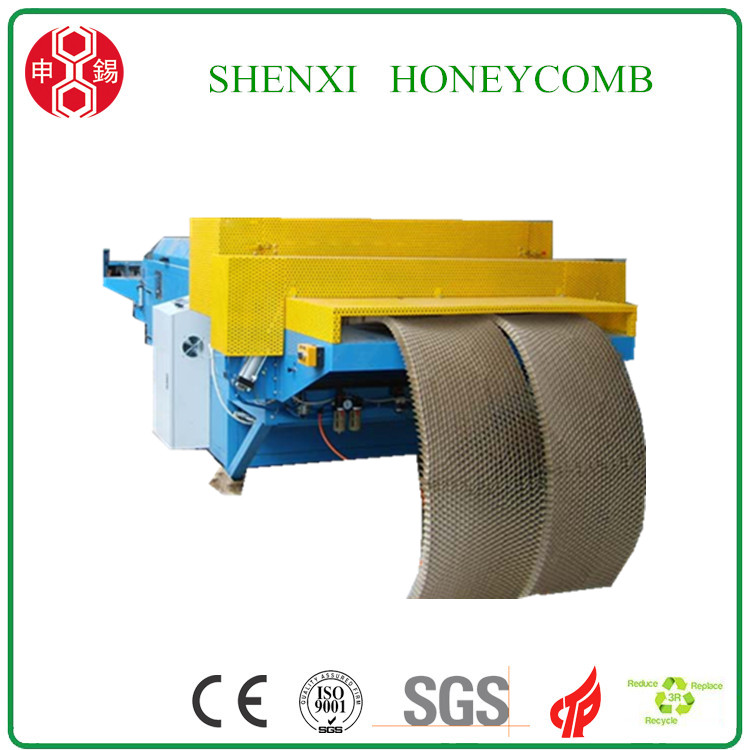

Full Automatic Honeycomb Paper Expanding Machine

Honeycomb Expanding machine, which is used to open the honeycomb core . This kind of honeycomb core is widely used in furniture and door industry, as the inside filler of sandwich panels.

Quantity:

Product Description

Full Automatic  Honeycomb Paper Expanding Machine


Description:

 Honeycomb Expanding machine, which is used to open the honeycomb core . This kind of honeycomb core is widely used in furniture and door industry, as the inside filler of sandwich panels.


Technical parameter:

Type

HEM-1450-D

HEM-1450-B

Effective width of core   paper(expanded)

0-1400mm

Function



Expanding , heating, trim,calibrating and Cutting,

Expanding ,heating,    calibrating, and Cutting

 Speed

0.6-4m/min

Honeycomb core feeding in   the ove

Chain with needles take   and drive honeycomb core beginning to cutting

Largest Input width

1800mm

Largest Output width

1400mm

Thickness of honeycomb

10-70mm

Paper

120-180g/m2

Cell size

5-40mm

Temperature control

Control automatically

Heating power

18kw

Motor power

2.2kw

0.2kw

Trim cut

Available

None

Trim blades qty

3

0

Installation power

20.2kw

18.2kw

 Control

PLC (Delta) system

Dimension

4600X2200X1300mm

4300X2200X1350mm

Weight

1000kg

800kg

Air supply

4-6kg/cm3

Voltage

3~, 380V/50Hz


full automatic honeycomb paper expanding machine
