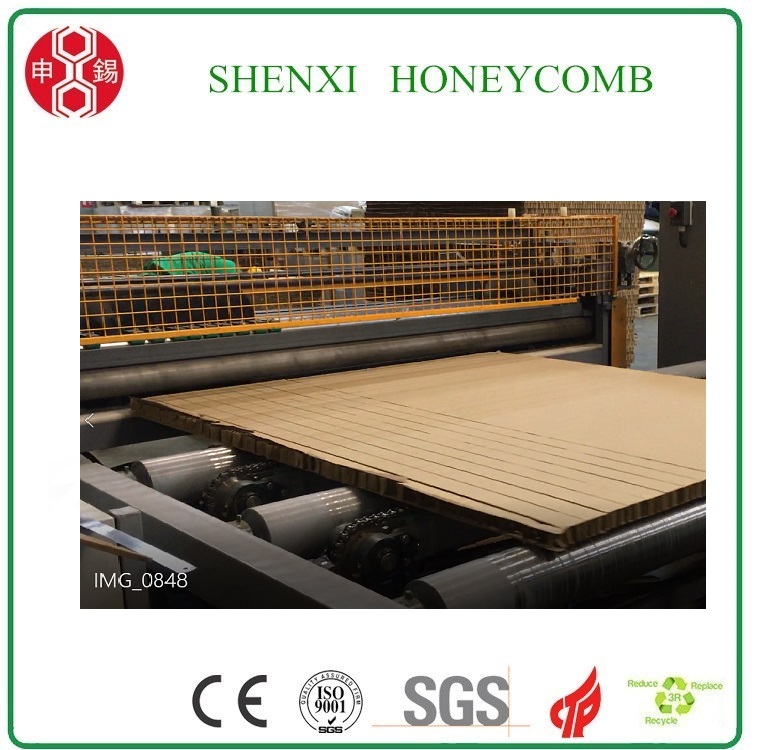

High speed honeycomb paperboard slitting machine

Quantity:
Inquire Add to Basket

  • Shenxi

Product Description

1.Product Introduction:
This honeycomb paperboard slitting machine is used to Cut the honeycomb board into required size, this is the basic machine to convert the honeycomb panel into boxes, pallets. Etc.

2.Features:
Machine width varies from 1800-2800mm
Blades fixed in one shaft, min. Distance between each blade is 120mm. So in this machine, the min. Width it can cut is 120mm.
This slitting machine can also be put in honeycomb lamination line, as in-line slitter, working as trimming and slitter.

3.Technical parameter
No Item Spec. Remarks
1 Model BDFQJ-2500
2 Width of passing paper board 2500mm
3 Max. Board thickness: 100mm

4 Min. board length 600
5 Speed of paper board 80-180m/min.
6 No. Of  knives 7
7 Min.slitting width 120mm
8 Diameter of  knife 350/380mm
9 Thickness of blade 2mm
10 Motor power 5.5kw, 380V/50Hz
11 Balde sharpening Automatic sharpening
12 Weight of machine 1200kg
