Cookies-cutting honeycomb slitting machine

Quantity:
  • Shenxi

Product Description

1.Product Introduction

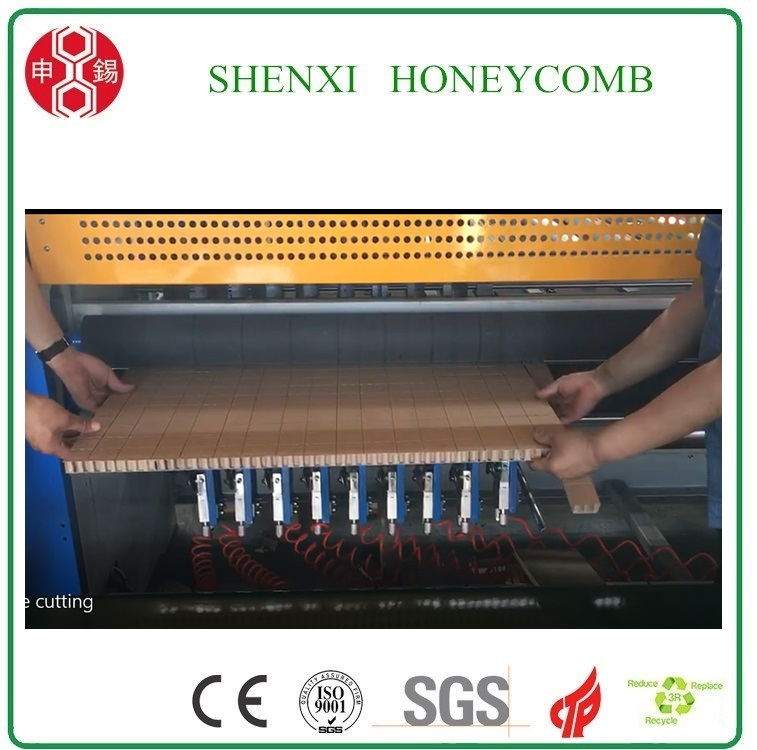

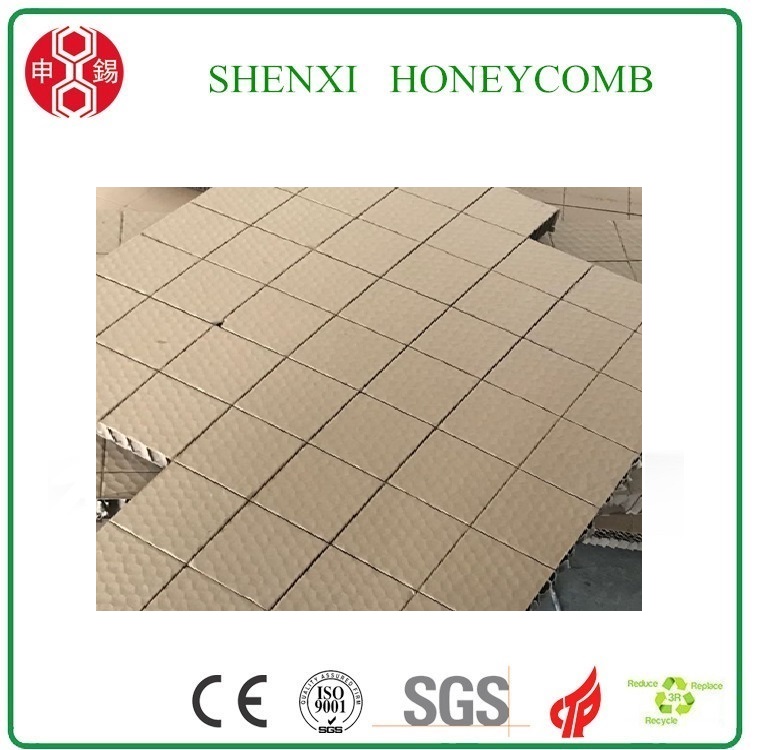

his machine is used to cut small pieces of honeycomb boards from big panels. Special cutting design, ensure the panel is still in one piece after cutting, like cookie cutting. Two machines can be connected together in “L” shape, which can be used to cookie cut the honeycomb panel into small pieces in one stop.

2.Techinical Parameter

No Item Spec. Remarks
1 Model BDFQJ-2000(B)
2 Width of passing paper board 2000mm
3 Max. Board thickness: 70mm


4 Min. board length 600
5 Speed of paper board 10-50m/min.
6 No. Of  knives in each slitting machine 24 12 on top, 12 at bottom
7 Min.slitting width 120mm
8 Diameter of  knife 350
9 Thickness of blade 2mm
10 Distance adjust Manually
11 Depth adjustment manually
12 Motor power 15kw, 480V/60Hz, 3 phases
13 Balde sharpening Automatic sharpening
14 Weight of machine 2500kg
