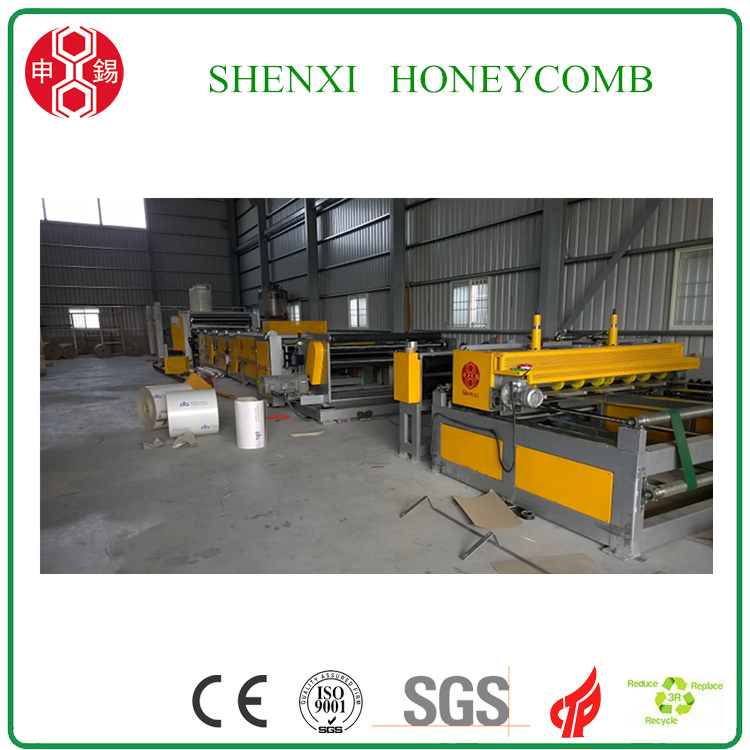

YBX-1650 Full Automatic Cardboard Lamination Line

  • YBX-1650

  • Shenxi

Product Description

This production line is used to apply glue on liner paper or grey board paper, bond 3-6 layers of paper together to get the paper board, which are widely used in small box packaging, steel/aluminum packaging industry.
This line consists of paper roll stands, gluing unit, driving unit, heating unit, cold press unit and cutting unit.

2.Techinical data

No. Item YBX-1450
1 Thickness of product 1-5mm
2 Max width of board 1450mm
3 Paper cutting precision ±2mm synchronize cutting
4 Length of board 500-4000mm
5 Trim Up and down saws trimming
6 Method of output Board stacking piece by piece
7 Raw materials for paper 80-800gms carton paper or craft paper
8 Max layers 4
9 Max design speed 40m/min
10 Actual speed 6-30m/min.
11 Heating method electricity
12 power 30KW
13 Heating power 30kw
14 Install power 60kw
15 Operate people 1-2
16 size 27000X4000X2500mm
