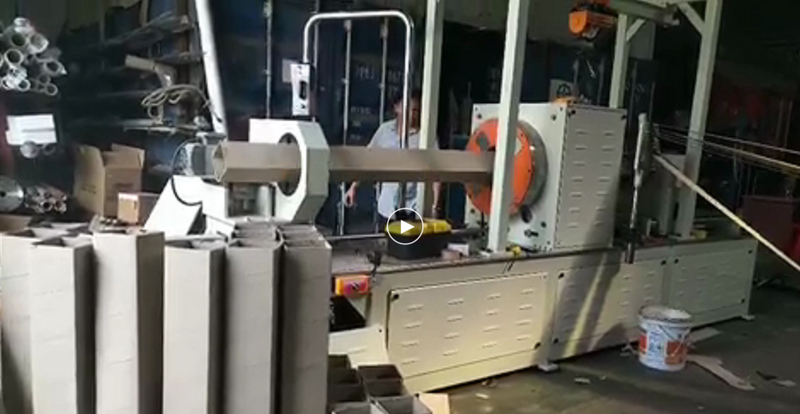

CNC Spiral Square Paper Tube Machine


Product Description






1) Rolling 30-200mm ID,thickness 3-10mm,cutting length tolerance ±1.5mm, speed 3-10m/minute;

2) Rolling power 15HP, controlling by mitsubishi inverter, tracking by mitsubishi Servo, total power 11KW*380V;

 3)Equipped with high speed saw (with dust collector),18 layers double gluing stand, one waxing stand,Pneumatic paper stand 3pcs.

4) With angle vibration & adjustment machine equipped with main machine, no need to changing paper stand and gluing stand;

5) Mold: 2pcs (hardened by electrical plating);(If you need to order another mold, different sizes of the mold’s price is different)

6) Mitsubishi inverter, Mitsubishi PLC controller, Mitsubishi 6 inches touching panel(in Chinese&English version), Mitsubishi Servo motor, THK high speed screw step-tracking saw, and other imported low voltage appliances;

7) Outer paper weight: Kraft paper with weight more than 175g;

8) Power: 11KW*380V*50HZ/3 phase, controlling display in English and Chinese version;

10)Machine size:5m(length)*1.2m(width)*2.1m(height), several packs for loading,5 tons in weight;
