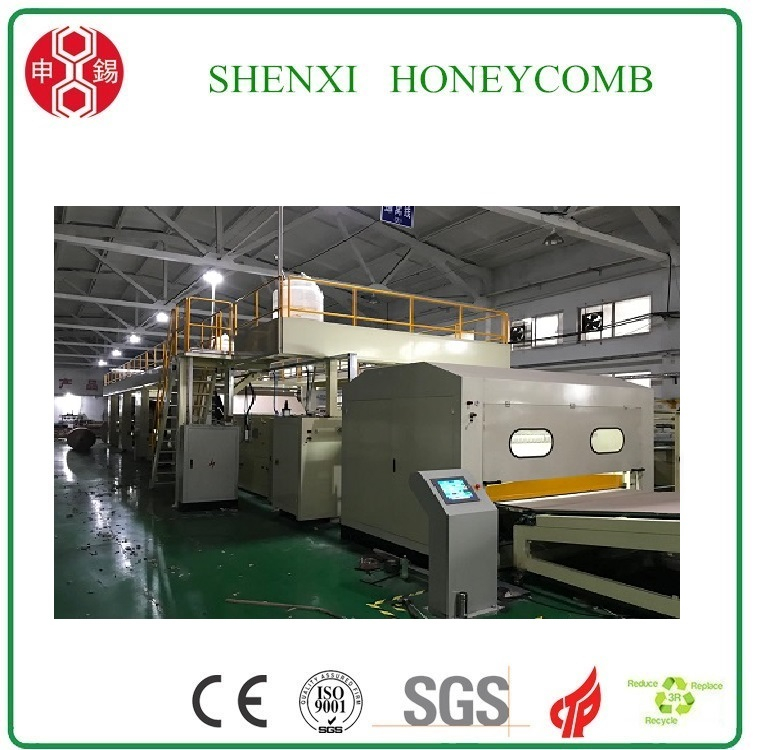

Standard High Efficiency Full Automatic Honeycomb paper Core Machine

Paper   feeder

1.The structure is double rotary shaft with four arms.  2. Hydraulic control for paper mill roller up-down,   clamp-open and centering. Max. 12MPa.

3.Effectivewidth:800=2000mm; max. paper roll diameter:   Φ1400mm.

3

Paper   pre-heater

1.Consists of tension rollers with flexible spring   pressure applied on roller to adjust the paper tension automatically.

Gluing   unit1

1.   5 layers of gluing unit in one station.

2. Gluing systemconsists: glue applying roller+glue feeding roller  +glue doctor roller.

1

Drying   machine unit& rubber roller driven unit

1. Conveyor roller is 180mm diameter rubber roller as the main driver.

2. Four-sides and up   & down surrounded by insulation cotton (40mm thickness), oven top and   bottom sides with monitoring and cleaning doors.

3.Temperature can be 0-150℃.

1

Final   gluing machine

1.Gluing system consists: glue applying Roller+ squeezing roller +glue doctor roller, the distance between each roller can be adjusted   through hand wheels and sliders.

2.Glue applying  roller production flow: heater treatment---machining—grinding machine---anilox roller process---finegrinding---polishing---coated with Chrome ---   polishing

1

Horizontal   cutting unit

1.Knife holder choose ductile cast iron structure, machine frame use 60mm thickness heavy duty   steel plate

2.Production flow: welding frame—heater treatment (whole frame)---machine frame and knife holder frame processed b CNC machine center (one time)--- assemble knife frame on machine frame

3. Knife: German  material, made in Taiwan

4.Knife cutting on  high precise linear guide(ABBA brand,)

1

Honeycomb   conveyor and collector

1.Belt  conveyor feed the honeycomb into the stacking area.

2.Stacking table height adjusted automatic according to honeycomb stacking height.

3.Max.   stacking height: 1200mm

1
