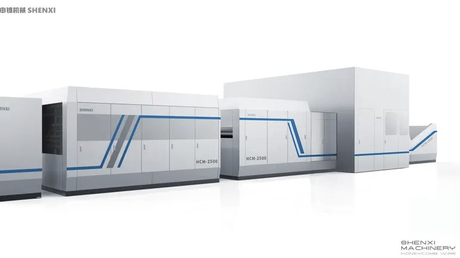

1. Full-automatic Honeycomb Core Machine
全自动蜂窝纸芯生产线
1.1 Description 概述
This machine is the newest type of honeycomb core making machine.It apply glue lines by glue roller system (traditional gluing) or glue pipe system (new gluing system)to make continous honeycomb in one stop. Horizontal cutting system, use 7075 alloy aluminum knife frame, for high speed, high efficiency and low vibrating cutting.
该生产线是最新的蜂窝纸芯机。它采用胶辊系统(传统上胶)或胶管系统(新型上胶系统)进行涂胶，使连续的蜂窝一次成型。卧式切割系统，采用7075铝合金刀架，实现高速、高效率、低振动切割。
1.2.Specification(技术参数)
No. | Item 项目 | HCM-1600/2000/2400/2800/3200 |
1 | Thickness of honeycomb paperboard 蜂窝芯厚度 | 6-100mm |
2 | Width of paper core (before expanding) 拉伸前宽度 | 1600/2000/2400/2800/3200 |
3 | Max. designning cutting speed 最大设计裁切速度 | 820 cuts/min. |
4 | Cutting tolerance 裁切精度 | +-0.1mm (with ring crush index over 7.0 Nm/g, thickness less than 50mm) +-0.1mm (环压 7.0 Nm/g以上） 厚度小于50mm |
5 | Applicable paper 适用纸张 | 90-200gsm corrugated paper as core paper(over 200gsm, use 4 layers) 90-200gsm瓦楞纸为芯纸(200gsm以上，使用4层) |
6 | Qty of paper reels 纸卷数量 | 6/8 |
7 | Cell size 蜂窝孔径 | 8-40mm (according to customer choice, choose two cell sizes) 8-40mm 根据客户选择，可选择两种尺寸 |
| Gluing roller /pipe change (for different cell size) 滚胶/喷胶 （ 更换不同孔径） | 10-30 minutes |
8 | Heating drying method 加热方式 | Electric heating 电加热 |
9 | Total Engine power 总电机功率 | 35KW |
10 | Installation power 装机功率 | 60kw |
11 | Normal working power consumption 正常工作功率 | 20-30kw |
12 | Man power 操作工数量 | 3 |
13 | Layout 布局尺寸 | 30000X5000X2500mm |
14 | Weight 重量 | 30 Tons |
15 | Power supply 标准供电 | Three phases, 380V/50Hz (can be speical made ) |
