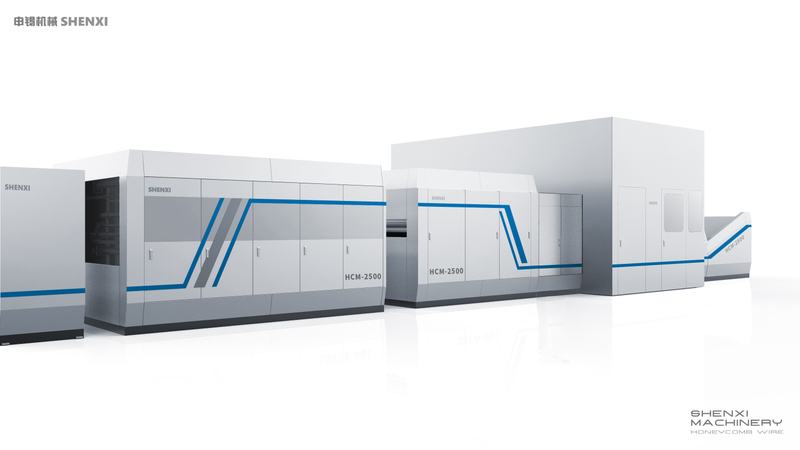

New honeycomb core machine

1.1 Description

Shenxi Honeycomb Machinery Factory, supply full automatic honeycomb core plant. from width 1600-2500mm. The whole production needs 2-3 persons while operating. make the honeycomb core from 6-100mm thickness and production capacity varies from 3-10 tons/ shift. the honeycomb core produced by this machine can be used for honeycomb board laminating, door filling, furnitures, display shred etc.
Availability:
Quantity:
  • HCM1600/2000/2400/2800/3200

  • 申锡

Product Description

1. Full-automatic Honeycomb Core Machine

全自动蜂窝纸芯生产线

1.1 Description 概述

This machine is the newest type of honeycomb core making machine.It apply glue lines by glue roller system (traditional gluing) or glue pipe system (new gluing system)to make continous honeycomb in one stop. Horizontal cutting system, use 7075 alloy aluminum knife frame, for high speed, high efficiency and low vibrating cutting.

该生产线是最新的蜂窝纸芯机。它采用胶辊系统(传统上胶)或胶管系统(新型上胶系统)进行涂胶,使连续的蜂窝一次成型。卧式切割系统,采用7075铝合金刀架,实现高速、高效率、低振动切割。蜂窝纸芯线

1.2.Specification(技术参数)

No.

Item 项目

HCM-1600/2000/2400/2800/3200

1

Thickness of honeycomb paperboard

蜂窝芯厚度

6-100mm

2

Width of paper core (before expanding)

拉伸前宽度

1600/2000/2400/2800/3200

3

Max. designning cutting speed

最大设计裁切速度

820 cuts/min.

4

Cutting tolerance

裁切精度

+-0.1mm (with ring crush index over 7.0 Nm/g, thickness less than 50mm)

+-0.1mm (环压 7.0 Nm/g以上) 厚度小于50mm

5

Applicable paper

适用纸张

90-200gsm corrugated paper as core paper(over 200gsm, use 4 layers)

90-200gsm瓦楞纸为芯纸(200gsm以上,使用4层)

6

Qty of paper reels

纸卷数量

6/8

7

Cell size

蜂窝孔径

8-40mm (according to customer choice, choose two cell sizes)

8-40mm 根据客户选择,可选择两种尺寸


Gluing roller /pipe change (for different cell size)

滚胶/喷胶 ( 更换不同孔径)

10-30 minutes

8

Heating drying method

加热方式

Electric heating

电加热

9

Total Engine power

总电机功率

                        35KW

10

Installation power

装机功率

60kw

11

Normal working power consumption

正常工作功率

20-30kw

12

Man power

操作工数量

3

13

Layout

布局尺寸

30000X5000X2500mm

14

Weight

重量

30 Tons

15

Power supply

标准供电

Three phases, 380V/50Hz (can be speical made )

纸芯线喷胶纸芯线滚胶
