Honeycomb paperboard die cutting machine
You are here: Home » Honeycomb Machine » Honeycomb die-cutting machine » Honeycomb paperboard die cutting machine
Share to:

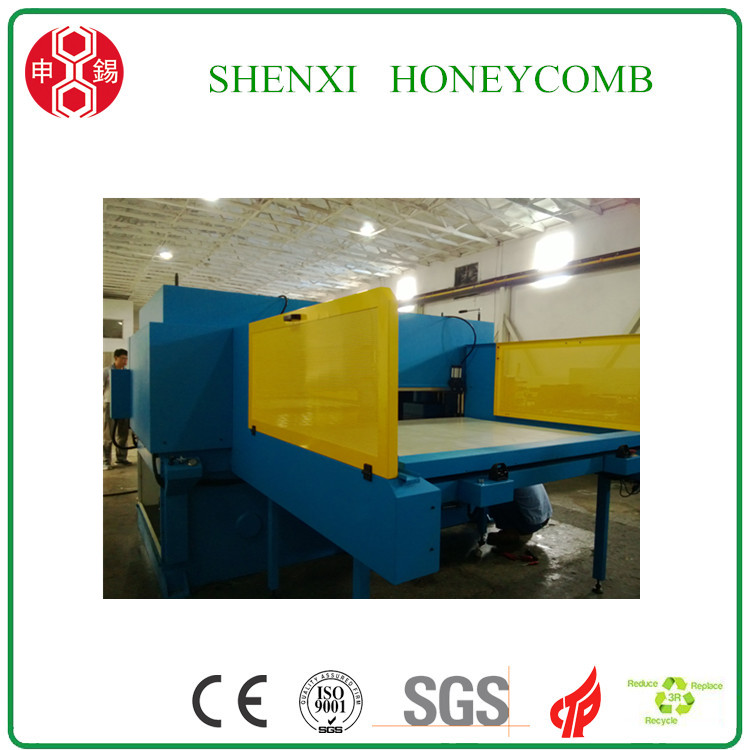

Honeycomb paperboard die cutting machine

Quantity:
  • Shenxi

Product Description

1.  Introduction:

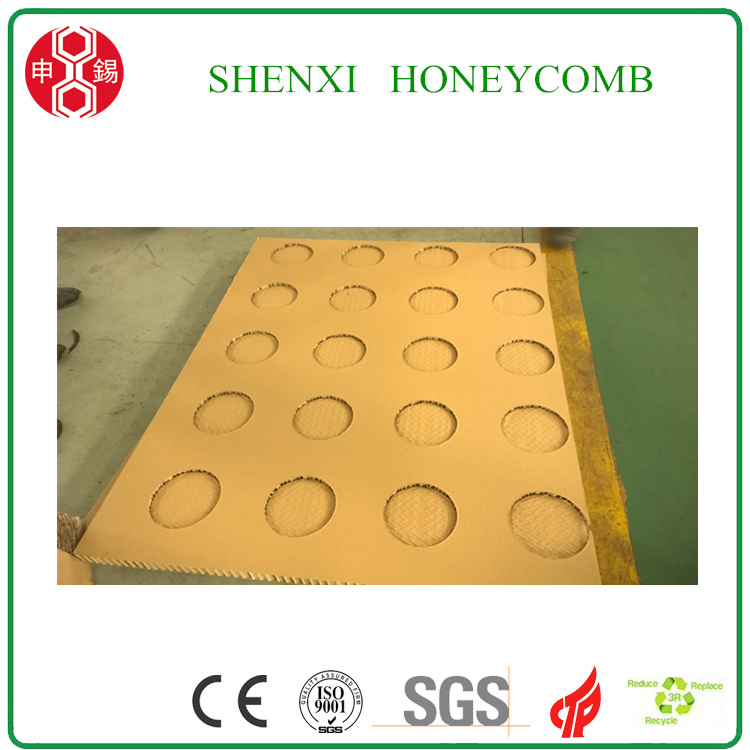

 Honeycomb Paperboard Die-cutting machine, used to punch different shape of full holes/ half holes on honeycomb paperboard.

2.  Features:
Cut any shape of holes on honeycomb board, thickness from 10-60mm
Punch complete holes or half holes on honeycomb paperboard
Hydraulic pressing, 40-100 tons of cutting pressure according to cutting area and thickness
We can make it automatically working in honeycomb board feeding, cutting, lifting and output .

3.Technical data

No. Model CY-40-1200/1200
1 Effective size of cutting(mm) 1200MMX1200MM
2 Max. die-cutting height of honeycomb board       60mm
3 Qty of hole cutting in one time     1-25 holes
4 Drive system for die-cutting 40tons, hydraulic
5 Lifting height  50-180 mm
6 Die- Cutting depth  1-60mm( adjustable)
7 Weight (tons) 3.2 tons
8 Dimensions 2000x1600x1600mm
