Product Description

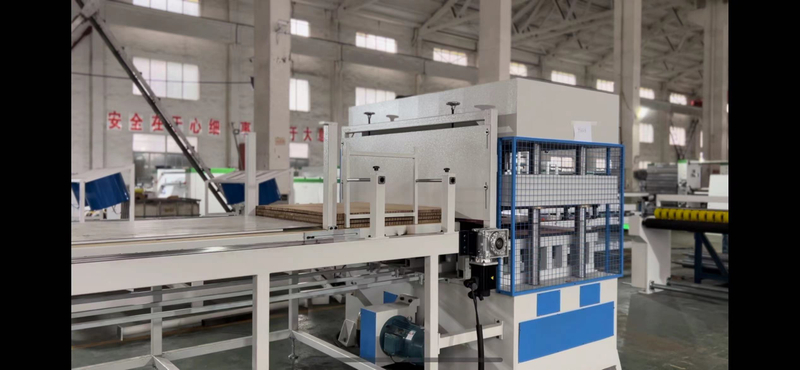

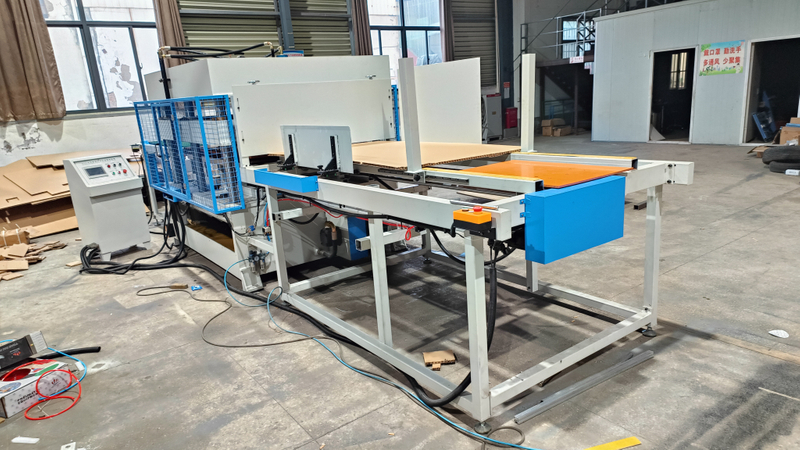

Honeycomb Paperboard Die Cutting Machine
1. Introduction:
Honeycomb Paperboard Die-cutting machine, used to punch different shape of full holes/ half holes on honeycomb paperboard.
(auto feed system)
2. Features:
Cut any shape of holes on honeycomb board, thickness from 10-60mm
Punch complete holes or half holes on honeycomb paperboard
No. | Model | CY-40-1600/2000 |
1 | Effective size of cutting(mm) | 1600MMX2000MM |
2 | Max. die-cutting height of honeycomb board | 60mm |
3 | Qty of hole cutting in one time | 1-25 holes |
4 | Drive system for die-cutting | 60tons, hydraulic |
5 | Lifting height | 100-300 mm |
6 | Qty of Guide Pillars | 6 |
7 | cylinder | ⌀130X200mm, 2sets |
8 | servo motor feeding | 1.5kw |
9 | Die- Cutting depth | 1-60mm( adjustable) |
10 | Weight (tons) | 2.8 tons |
11 | Power (oil pump) | 5.5kw |
12 | Dimensions | 6500x2000x1600mm |
Hydraulic pressing, 40-100 tons of cutting pressure according to cutting area and thickness
We can make it automatically working in honeycomb board feeding, cutting, lifting and output .
