Product Description
1.1 Description

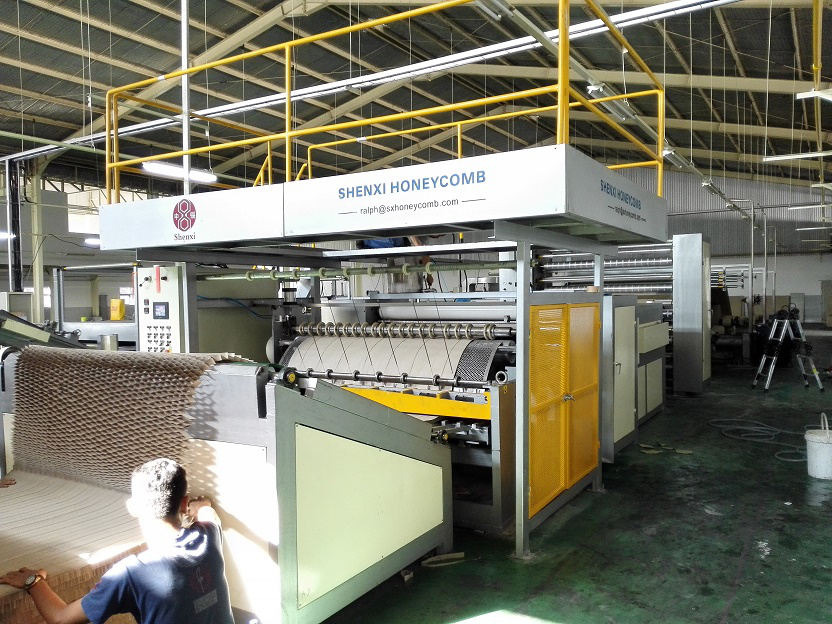

Shenxi Honeycomb Machinery Factory, supply full automatic honeycomb core plant. from width 1600-2500mm. The whole production needs 2-3 persons while operating. make the honeycomb core from 6-100mm thickness and production capacity varies from 3-10 tons/ shift. the honeycomb core produced by this machine can be used for honeycomb board laminating, door filling, furnitures, display shred etc.
1.2.Supplying list
Name | Techniques | Qty |
Paper feeder | 1.The structure is double rotary shaft with four arms. 2. Hydraulic control for paper mill roller up-down, clamp-open and centering. Max. 12MPa. 3.Effectivewidth:800=2000mm; max. paper roll diameter: Φ1400mm.
| 3 |
Paper pre-heater | 1.Consists of tension rollers with flexible spring pressure applied on roller to adjust the paper tension automatically.
| |
Gluing unit1 | 1. 5 layers of gluing unit in one station. 2. Gluing systemconsists: glue applying roller+glue feeding roller +glue doctor roller.
| 1 |
Drying machine unit& rubber roller driven unit | 1. Conveyor roller is 180mm diameter rubber roller as the main driver. 2. Four-sides and up & down surrounded by insulation cotton (40mm thickness), oven top and bottom sides with monitoring and cleaning doors. 3.Temperature can be 0-150℃.
| 1 |
Final gluing machine | 1.Gluing system consists: glue applying Roller+ squeezing roller +glue doctor roller, the distance between each roller can be adjusted through hand wheels and sliders. 2.Glue applying roller production flow: heater treatment---machining—grinding machine---anilox roller process---finegrinding---polishing---coated with Chrome --- polishing
| 1 |
Horizontal cutting unit | 1.Knife holder choose ductile cast iron structure, machine frame use 60mm thickness heavy duty steel plate 2.Production flow: welding frame—heater treatment (whole frame)---machine frame and knife holder frame processed b CNC machine center (one time)--- assemble knife frame on machine frame 3. Knife: German material, made in Taiwan 4.Knife cutting on high precise linear guide(ABBA brand,)
| 1 |
Honeycomb conveyor and collector | 1.Belt conveyor feed the honeycomb into the stacking area. 2.Stacking table height adjusted automatic according to honeycomb stacking height. 3.Max. stacking height: 1200mm
| 1 |
