6mm Full automatic Honeycomb Core paper Machine with CE

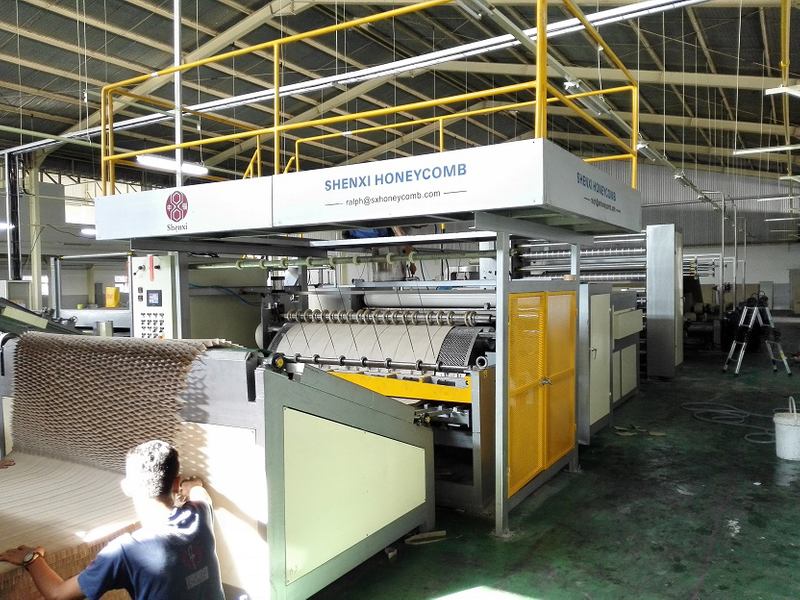

Shenxi Honeycomb Machinery Factory, supply full automatic high spped 6mm honeycomb core plant.
  • HCM-2400

  • Shenxi

Product Description

1.1 Description

Shenxi Honeycomb Machinery Factory, supply full automatic honeycomb core plant. from width 1600-2500mm. The whole production needs 2-3 persons while operating. make the honeycomb core from 6-100mm thickness and production capacity  varies from 3-10 tons/ shift.  the honeycomb core produced by this machine can be used for honeycomb board laminating,  door filling, furnitures, display shred etc.

1.2.Supplying list




Paper   feeder

1.The structure is double rotary shaft with four arms.  2. Hydraulic control for paper mill roller up-down,   clamp-open and centering. Max. 12MPa.

3.Effectivewidth:800=2000mm; max. paper roll diameter:   Φ1400mm.

CE standard full automatic honeycomb core machine


Paper   pre-heater

1.Consists of tension rollers with flexible spring   pressure applied on roller to adjust the paper tension automatically.

honeycomb core machine


Gluing   unit1

1.   5 layers of gluing unit in one station.

2. Gluing systemconsists: glue applying roller+glue feeding roller  +glue doctor roller.

honeycomb core machine


Drying   machine unit& rubber roller driven unit

1. Conveyor roller is 180mm diameter rubber roller as the main driver.

2. Four-sides and up   & down surrounded by insulation cotton (40mm thickness), oven top and   bottom sides with monitoring and cleaning doors.

3.Temperature can be 0-150℃.

honeycomb core machine


Final   gluing machine

1.Gluing system consists: glue applying Roller+ squeezing roller +glue doctor roller, the distance between each roller can be adjusted   through hand wheels and sliders.

2.Glue applying  roller production flow: heater treatment---machining—grinding machine---anilox roller process---finegrinding---polishing---coated with Chrome ---   polishing

honeycomb core machine


Horizontal   cutting unit

1.Knife holder choose ductile cast iron structure, machine frame use 60mm thickness heavy duty   steel plate

2.Production flow: welding frame—heater treatment (whole frame)---machine frame and knife holder frame processed b CNC machine center (one time)--- assemble knife frame on machine frame

3. Knife: German  material, made in Taiwan

4.Knife cutting on  high precise linear guide(ABBA brand,)

honeycomb core machine


Honeycomb   conveyor and collector

1.Belt  conveyor feed the honeycomb into the stacking area.

2.Stacking table height adjusted automatic according to honeycomb stacking height.

3.Max.   stacking height: 1200mm

honeycomb core machineZW1E
