Product Description
1.Production Introduce

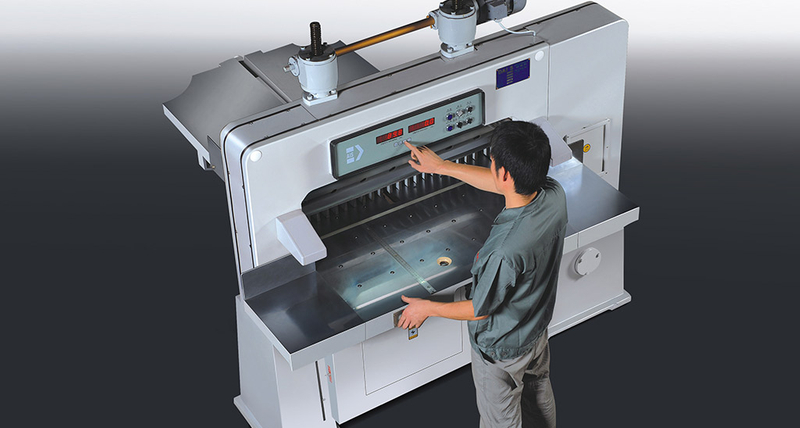

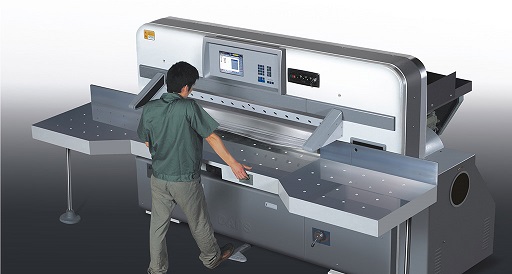

This machine is used to cut the paper honeycomb block into slice, like 20mm thickness, 30mm thickness.
2.Technical parameter:
| Model | M10 |
| Max. cutting width | 1660mm |
| Max. cutting length | 1660mm |
| Max. cutting height: | 165mm |
| Max. Clamp pressure | 60000N |
| Cutting Speed | 12r/min(working speed) |
| Main Motor | 5.5KW |
| Dimension(mm) | 3230×3610×1760 |
| Weight | 6700kg |
| Voltage | 380V |
| Frequency | 50Hz |
| Electric appliance | Schneider |
| Pneumatic component | Airtac |
| Photoeletric switch | Omron |
