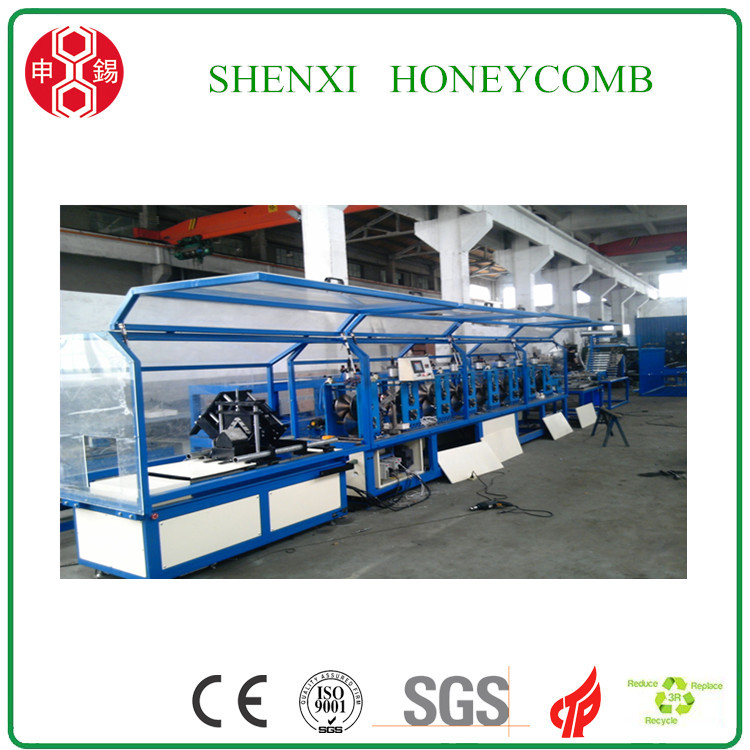

Paper Edge Board Protector Machine

Edge board machine is used to make the L shape /U shape and flat-board edge protector in high speed.


Product Description

Product Description:

Edge board machine is used to make the L shape /U shape and flat-board edge protector in high speed. This machines consists of paper reel stands (11 layers, 1 layer face paper, 10 layers of core paper), gluing unit, Edge wrapping unit, Pressing unit, Cutting unit and output conveyor.

Technical Prameter:

Dimensions   for L shape

25   X 25mm up to 100 X 100mm

Dimensions   for U shape

Inner   width 20-70 , two sides height: 20-60

Dimension   for flatboard

width:   40-150mm

Wall   thickness

L  : 2-8mm

U   shape: 2-6mm

Flatboard:   2-8mm

Cutting   length

50mm   up to maximum as required

cutting   precision(tolerance)

+ -   0.5mm

Production   rate

L :   0-40m/min

U:   0-30m/min

Flatboard:   0-35m/min

Glue   applying

Double   face applying glue

Main   power

11kw   , 380V/50Hz


4.5   tons

Layout   space


paper edge board machine

paper edge board machine
