High Speed Washable Full automatic Honeycomb Core Machine For Panel

1.High Speed Cutting, max. 700 cuts/min.
2. Quick glue roller change system, 20 minutes to change all gluing rollers

Quantity:

Product Description

1.1 Description

Shenxi Honeycomb Machinery Factory, supply full automatic honeycomb core plant. from width 1600-2500mm. The whole production needs 2-3 persons while operating. make the honeycomb core from 6-100mm thickness and production capacity  varies from 3-10 tons/ shift.  the honeycomb core produced by this machine can be used for honeycomb board laminating,  door filling, furnitures, display shred etc.


1.2.Supplying list

Name

Techniques

Qty

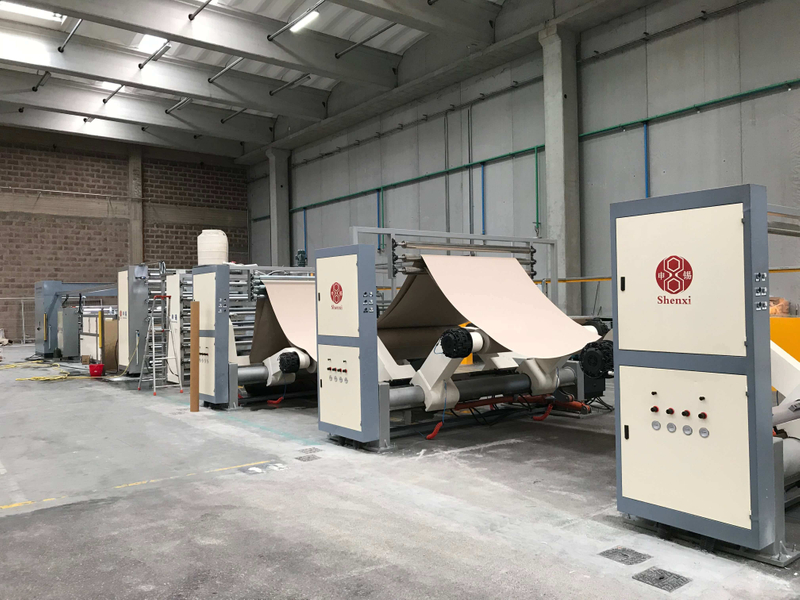

Paper   feeder

1.The structure is double rotary shaft with four arms.  2. Hydraulic control for paper mill roller up-down,   clamp-open and centering. Max. 12MPa.

3.Effectivewidth:800=2000mm; max. paper roll diameter:   Φ1400mm.

CE standard full automatic honeycomb core machine

3

Paper   pre-heater

1.Consists of tension rollers with flexible spring   pressure applied on roller to adjust the paper tension automatically.

honeycomb core machine




Gluing   unit1

1.   5 layers of gluing unit in one station.

2. Gluing systemconsists: glue applying roller+glue feeding roller  +glue doctor roller.

honeycomb core machine

1

Drying   machine unit& rubber roller driven unit

1. Conveyor roller is 180mm diameter rubber roller as the main driver.

2. Four-sides and up   & down surrounded by insulation cotton (40mm thickness), oven top and   bottom sides with monitoring and cleaning doors.

3.Temperature can be 0-150℃.

honeycomb core machine

1

Final   gluing machine

1.Gluing system consists: glue applying Roller+ squeezing roller +glue doctor roller, the distance between each roller can be adjusted   through hand wheels and sliders.

2.Glue applying  roller production flow: heater treatment---machining—grinding machine---anilox roller process---finegrinding---polishing---coated with Chrome ---   polishing

honeycomb core machine

1

Horizontal   cutting unit

1.Knife holder choose ductile cast iron structure, machine frame use 60mm thickness heavy duty   steel plate

2.Production flow: welding frame—heater treatment (whole frame)---machine frame and knife holder frame processed b CNC machine center (one time)--- assemble knife frame on machine frame

3. Knife: German  material, made in Taiwan

4.Knife cutting on  high precise linear guide(ABBA brand,)

honeycomb core machine

1

Honeycomb   conveyor and collector

1.Belt  conveyor feed the honeycomb into the stacking area.

2.Stacking table height adjusted automatic according to honeycomb stacking height.

3.Max.   stacking height: 1200mm

honeycomb core machineZW1E

1



Features

 Features:

1.     Automatic glue feeding system, no need to watch the glue feeding all the time.

2.    Min. 8mm thickness of honeycomb make, to replace the corrugating board.

Full automatic Honeycomb Core Machine


Specification

Specification


No.

Item

HCM-2000

1

Thickness of honeycomb paperboard

6-100mm

2

Width of paper core (before expanding)

2000mm

3

Honeycomb core cutting speed

0-820 cuts/min.(decided by thickness)

4

Cutting tolerance

+-0.1mm (with ring crush index over 7.0 Nm/g, thickness less than 50mm)

5

Applicable paper

90-200gsm corrugated paper as core paper(over 200gsm, use 4 layers)

6

Qty of paper reels

6

7

Cell size

8-40mm (according to customer choice, choose two cell sizes)

8

Heating drying method

Electric heating /steam heating (according to customer condition)

9

Total Engine power

                         42KW

10

Installation power

90kw (electric heating system)

11

Normal working power consumption

40-60kw (electric heating)

12

Man power

3

13

Layout

27000X4500X3000mm

14

Weight

30 Tons

15

Power supply

Three phases, 380V/50Hz
