X- Y Automatic Honeycomb cutting Machine
You are here: Home » Honeycomb related Equipment » IKEA honeycomb cutting machine » X- Y Automatic Honeycomb cutting Machine
Share to:

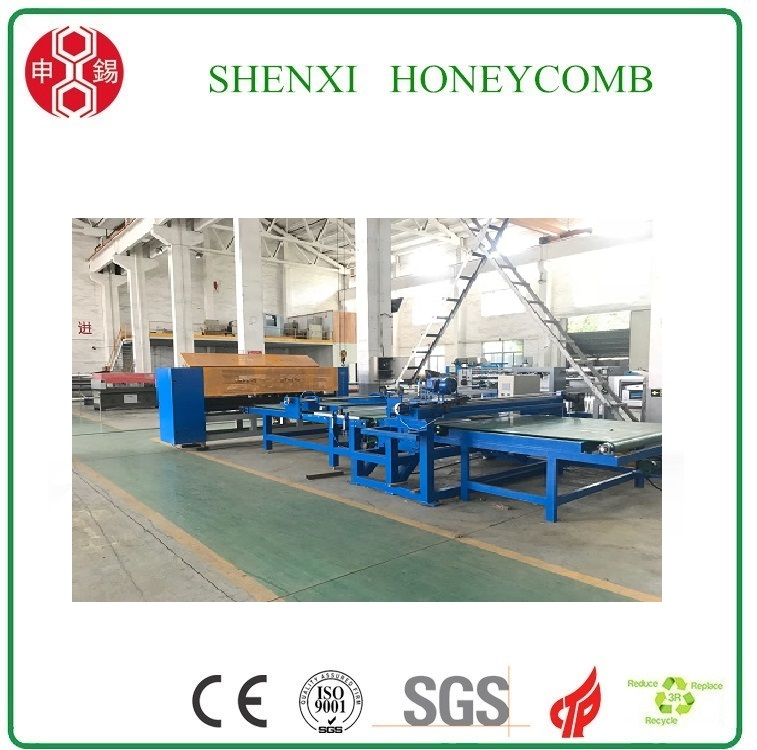

X- Y Automatic Honeycomb cutting Machine

This machine is used to cut small pieces, widely used in cutting the small pieces, like 50X50mm.

Quantity:
  • XKCQ-1600
  • Shenxi

Product Description

This machine is used to cut small pieces, set the cutting length on touch screen, the blade will cut the paperboard automatically. Cooling system, automatically cooling blade after each cut.  This machine is widely used in cutting the small pieces, like 50X50mm.

Width:  0-1600mm

Min. cutting length: 20mm

Cutting speed: 10 cuts/min.

Sharpening : automatic

Max. board Cutting length: 2500mm

Paper feeding: servo motor feeding

Cutting tolerance: +-1.5mm

Max. cutting height: 70mm

Cutting motor power: 3kw

Installation power:  6kw
