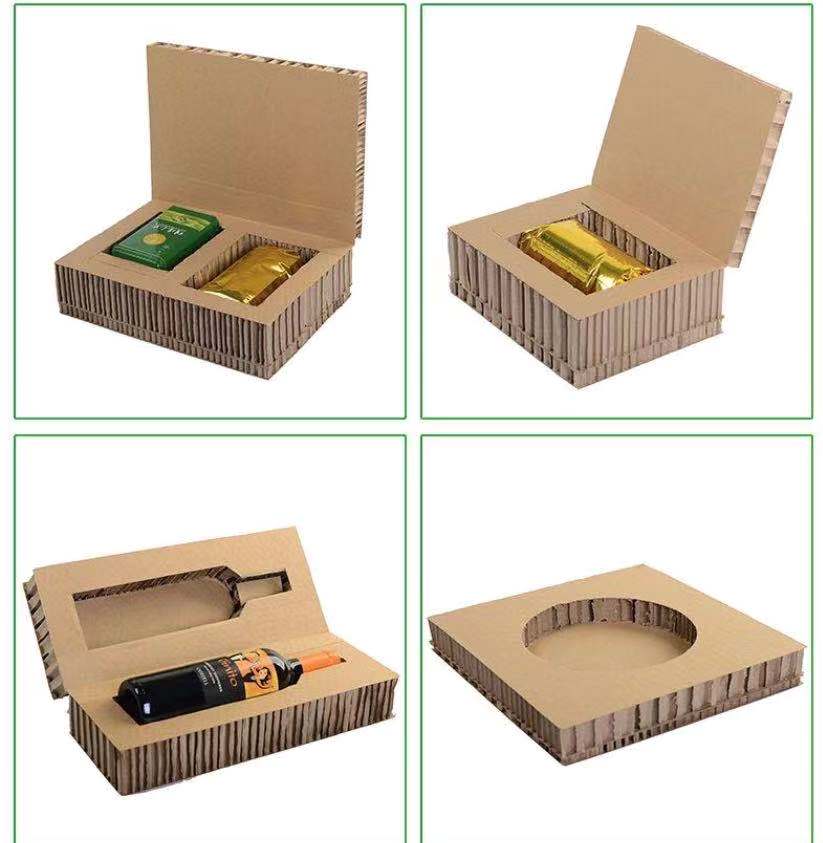

Honeycomb paperboard brings great convenience to our life.China produces many honeycomb paperboard every year, which are used in various fields. So how to produce honeycomb paperboard?What are the tips to use honeycomb die cutting machine?This article will introduce it in detail.
The following knowledge points are listed below:
Pay attention to adjusting honeycomb die cutting machine
adjustment of bearing clearance of honeycomb die cutting machine
adjustment of the axial orientation of honeycomb die cutting machine shafting
pre-tightening of honeycomb die cutting machine bearing
Tips to maintain the honeycomb die cutting machine
(1) adjustment of bearing clearance of honeycomb die cutting machine
In order to ensure the normal operation of honeycomb die cutting machine production line bearings, it is usually necessary to leave appropriate bearing clearance (clearance).The honeycomb die cutting machine often uses two ways to adjust the bearing clearance: one is to adjust the bearing clearance by increasing or decreasing the gasket thickness;Another is to use the adjusting screw J1 through the bearing outer ring gland 2 to move the bearing outer ring orientation to adjust the bearing gap, after adjustment, with nut 3 lock to prevent loosening.
(2) adjustment of the axial orientation of honeycomb die cutting machine shafting
The purpose of adjusting the axial bearing of shafting is to ensure that certain parts of the shaft get a more accurate working position.Straight tooth bevel gear transmission of honeycomb paperboard production line, two degrees of cone top overlap dry to ensure its correct engagement, should make the two bevel gear shafting according to the direction shown to adjust to the solid line azimuth, paper Angle protection production line to increase or decrease the cup end face and honeycomb die cutting machine seat between the thickness of the adjustment gasket can adjust the axial bearing of the bevel gear shafting;Worm drive demands that the main plane of worm gear passes through the axis of worm, so the worm gear shaft system should be adjusted in the axial direction.
(3) pre-tightening of honeycomb die cutting machine bearing
Preload of bearing means its axial preload.Certain axial preload is applied to some adjustable clearance bearings when they are installed, so as to cause relative displacement of inner and outer rings and eliminate bearing clearance.At the contact of the ring and the rolling body, a certain elastic pre-deformation occurs, thus improving the rotation accuracy of the shaft and the rigidity of the bearing combination, reducing the vibration and noise.Preload can be obtained by adding metal gasket between the bearing outer ring (or inner ring) or by grinding the outer ring (or inner ring) narrow.
Honeycomb die cutting machine factory has a long service life and maintenance free period, honeycomb die cutting machine will rely on the following factors: normal working conditions, maintain a harmonious temperature/pressure ratio, and reasonable corrosion data, so maintenance should pay attention to:
1) when the honeycomb die cutting machine is closed, there is still pressure fluid in the honeycomb paper core machine
2) before maintenance of honeycomb die cutting machine , remove the pipeline pressure and make the honeycomb die cutting machine in the open position.
3) disconnect the power or air source before maintenance of honeycomb die cutting machine
4) separate the actuator from the bracket before maintenance of the honeycomb die cutting machine.
I hope this article is helpful for you to use the honeycomb die cutting machine, and if you need a honeycomb die cutting machine, please contact us.
