What are the instructions of honeycomb panel machines？

Honeycomb panels are a new type of environmentally friendly building materials that are widely used. The honeycomb panel machine also has various sizes of machines to choose from. Some professional people know that honeycomb panels are produced by honeycomb panel machines. However, seldom individuals know how to use the honeycomb panel machines. Thus, I'd like to expand on the instructions of honeycomb panel machines in order to assist you to have a better understanding of the efficiency of honeycomb panel machines.

Here is the list of the article:

What are the components of honeycomb panel machines?

How many kinds of honeycomb panel machines are there in our company?

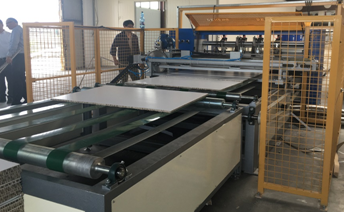

What are the components of honeycomb panel machines?

In order to more accurately describe how the machine works, I combined these two contents together.

1. Paper feeder. The structure is double rotary shafts with four arms, support two paper mill rolls on both arms at the same time.

2. Core expanding platform. Honeycomb input width (before expanding): 1500-2150mm.

3.CORE conveying expand drying unit. Heating methods are steam heating or electric heating. Electric pipe heating into 2 groups.

4.Gluing machine. Glue applicator roller or doctor roller: the surface is wrapped with rubber,  even glue supply and durable. Doctor roller: 76mm diameter, rubber roller. Anti-rust.

5.Green belt press. Edge of Conveying belt(Rubber belt) to ensure the paper board pass through the middle of this unit, press paperboard evenly while conveying. The speed of the Conveyor belt is controlled by a frequency inverter.

6.Hot board. The hot board is a 25mm thick aluminum panel on both top and bottom. Temp: ~ 120-celsius degree, controlled automatically.

7.Paperboard oven. Heating method: Steam heating/ electric heating, heating box fixed outside oven, centrifugal fan pump in the hot air into the oven, hot air circulation. Heating power (electric   heating):36kw

8.Gold press. Cooling method, 8 sets of axial fans force to cool the fresh paperboard oven, increase its hardness.length:9000mm

9.Trimming&wast collecting system. Including one slitting machine+ one chopping blower + necessary pipes.

10. Paperboard cross-cut. 1.Cutting length controlled by the encoder (length can be set on the touch screen), length cutting: 500-4000mm. Max. Cutting height: 150mm

11.Power supply box. 1.Building frames on top of the machine, to fix the tables and trunk and Cables; wiring clean and safe is reasonable, maintenance is convenient. Touching screen operation displays and setting, PLC system control. Electric control components all adopt schneideromron and delta sets of products.

How many kinds of honeycomb panel machines are there in our company?

There are various kinds of honeycomb panel machines in our company, include honeycomb panel machines for making paperboard, shenxi full automatic honeycomb panel machine, high speed honeycomb panel machine, corrugate paper honeycomb panel produce, etc.

Do you have a demand for honeycomb panel machines? Welcome to contact our company, Wuxi Shenxi Honeycomb Machinery Factory. I am sure that the honeycomb panel machines produced by our factory can meet all your needs. You can call our sales hotline directly, 0086 13861692012. You can also email us, ralph@sxhoneycomb.com. Our address is No.8 Tianshun Road, Yangshan Town, Huishan District, Wuxi 214156 China.

If you need honeycomb die paper cutting, please contact us. You can call our sales hotline directly, 0086 13861692012.
