Product Description
Product Description

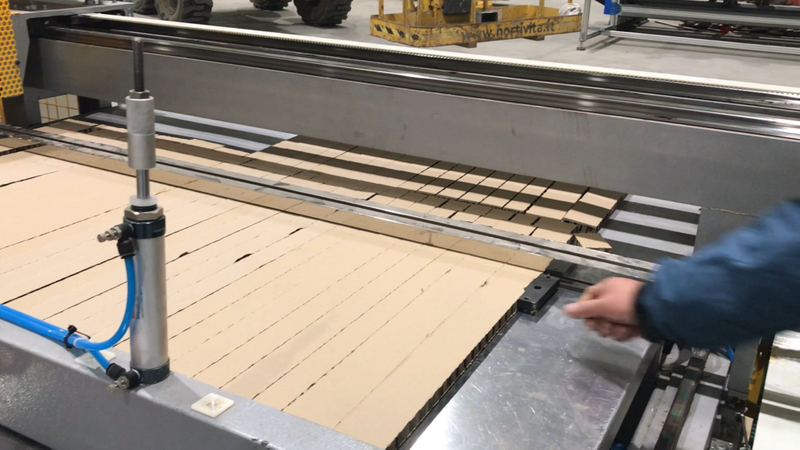

This line consists of two parts. Part 1 is longitudinal cutting (slitting unit) , part 2 is cross cutting. The big honeycomb panel passed through slitting unit, to cut the panels into long & narrow pieces board.
Then to part 2, cross cutting unit. Take the long & narrow pieces of honeycomb board, feed by servo motor to cutting area, feed distance each time is decided by servo motor, set on HMI.
This machine can cut 1200X1200mm panel into 120X50mm automatically in one stop.
Technical Parameter:
No. | Item | Spec. |
1 | Max. Input panel size | 1600X2000mm |
2 | Min. Slitting width in slitter | 60mm |
3 | Slitting machine blades qty | 17 blades |
4 | Min. Cutting length in cross cutting unit | 30mm |
5 | Min. Output size | 60X30mm |
6 | Max. Cutting height | 70mm |
7 | Machine layout | 8000mmx2500mm |
8 | cutting speed | 200 pcs/min. (100X50mm size) |
8 | Cutting tolerance | +-0.15mm |
10 | Cutting speed | 15-20 cuts/min. (cross cutting speed) |
11 | Paperboard Feed | Servo motor feeding |
12 | Power | Slitting unit: 5.5-11kw Cross cutting unit: 7kw |
