Low Cost IKEA Paper Honeycomb Cutting Machine
You are here: Home » Honeycomb related Equipment » IKEA honeycomb cutting machine » Low Cost IKEA Paper Honeycomb Cutting Machine
Share to:

Low Cost IKEA Paper Honeycomb Cutting Machine

Quantity:

Product Description

Product Description

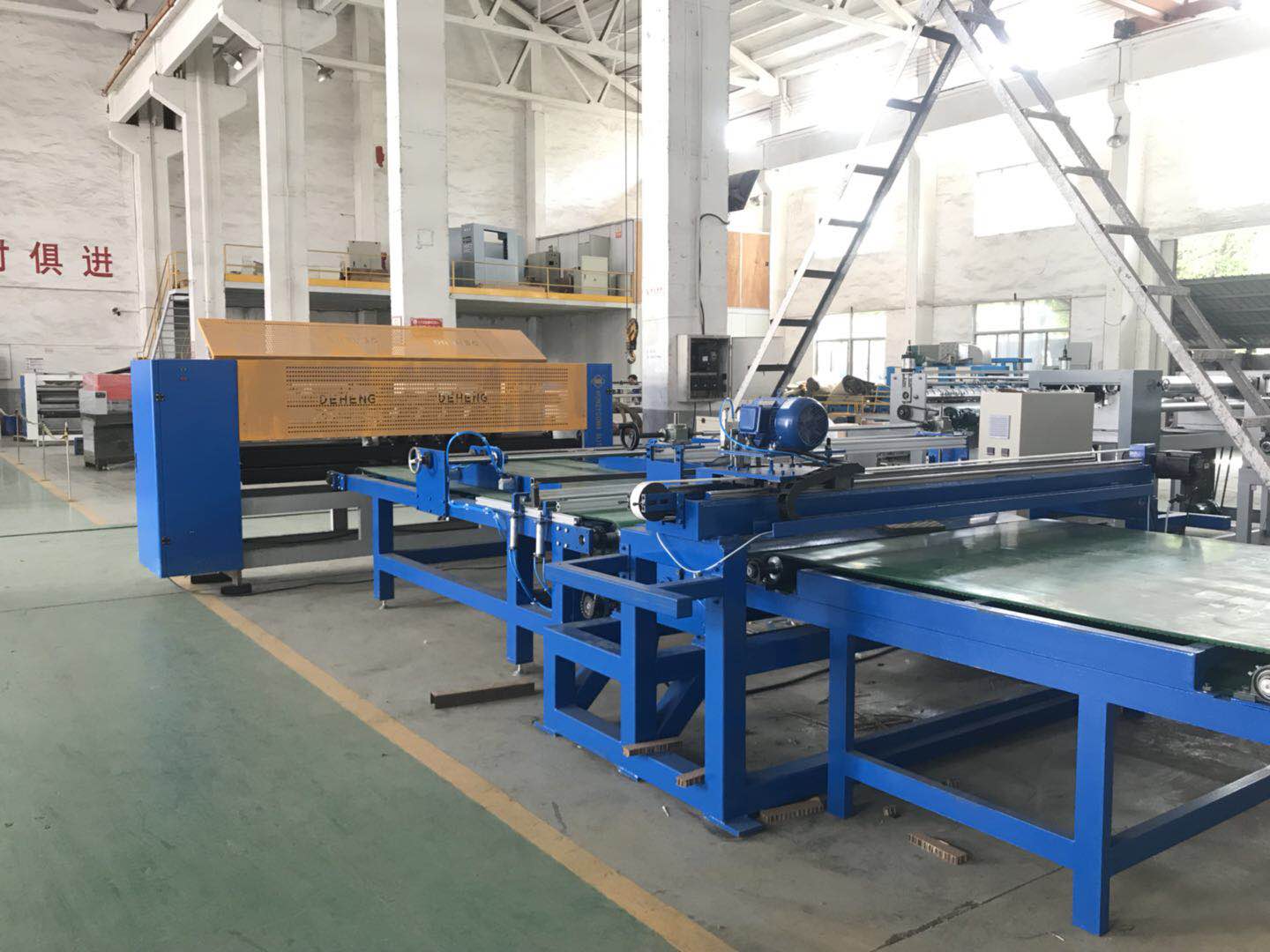

This line consists of two parts. Part 1 is longitudinal cutting (slitting unit) , part 2 is cross cutting. The big honeycomb panel passed through slitting unit, to cut the panels into long & narrow pieces board.

Then to part 2, cross cutting unit. Take the long & narrow pieces of honeycomb board, feed by servo motor to cutting area, feed distance each time is decided by servo motor, set on HMI.

This machine can cut 1200X1200mm panel into 120X50mm automatically in one stop.

Technical Parameter:

No.

Item

Spec.

1

Max. Input panel size

1600X2000mm

2

Min. Slitting width in   slitter

60mm

3

Slitting machine   blades qty

17 blades

4

Min. Cutting length in   cross cutting unit

30mm

5

Min. Output size

60X30mm

6

Max. Cutting height

70mm

7

Machine layout

8000mmx2500mm

8

cutting speed

200 pcs/min. (100X50mm   size)

8

Cutting tolerance

+-0.15mm

10

Cutting speed

15-20 cuts/min. (cross   cutting speed)

11

Paperboard Feed

Servo motor feeding

12

Power

Slitting unit:   5.5-11kw

Cross cutting   unit:  7kw

IKEA honeycomb cutting machine
