1. Effective width:1400-2000mm; max. paper roll diameter: Φ1400mm.

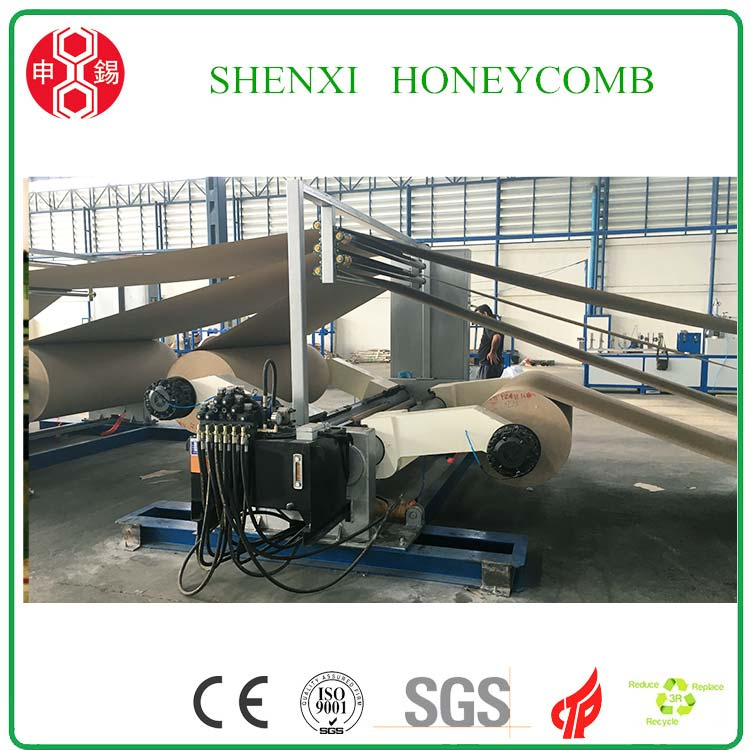

2. The structure is double rotary shafts (Ø216mmX18mm shaft) with four arms( 16mm thickness casting structure), 150/50X450 oil cylinder to lift the paper reel, 65/35X1050 oil cylinder to move the paper in left and right direction.
3. Hydraulic control for paper mill roller up-down, clamp-open and centering. Max. 12MPa.
4. Max. support weight: 2.5T
5. Net Weight of paper reel stand: 3 tons
6. Inner diameter of paper roll: Φ76mm/100mm
7. Paper web tension controlled by multi-point pneumatic brakes, ensure the paper tension evenly.
8. Oil pump motor power: 3.7kw
