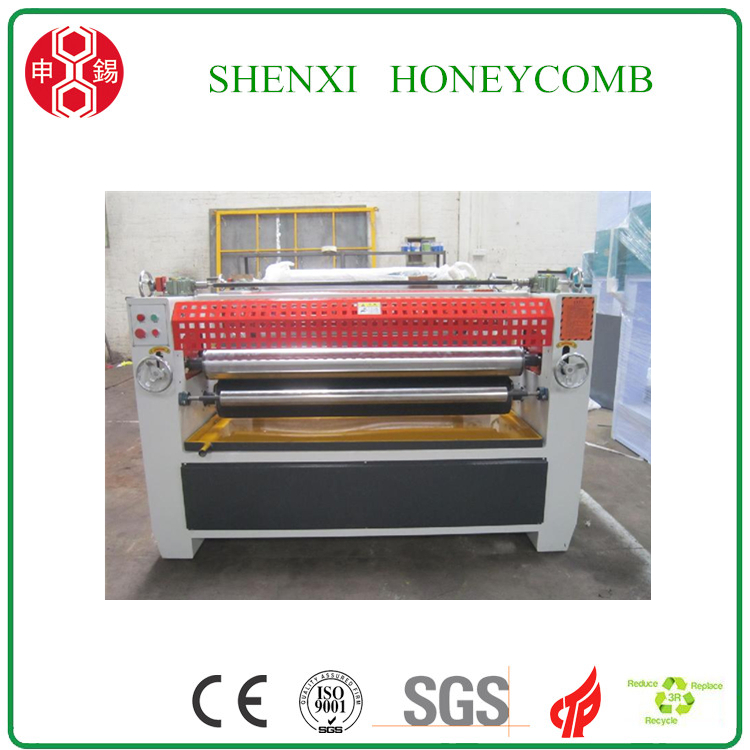

Paper Gluing Machine

Quantity:
  • Shenxi

Product Description

1.Product Introduction
This machine can be used to apply glue on honeycomb board, bond several layers together. Besides, it can be also used to apply glue on pallet legs.

2.Techinical Data

Max. thickness: 80(mm)
Feeding speed 25m/min
Roller material Hard rubber, anti-rust
Dimension 2000x650x1140(mm)
Gluing roller system 216mm Glue applying roller+106mm glue control roller
Glue applying Double-face gluing.
Application in furniture industry
Max. width 1600mm
Weight 800kg
Power: 3(kw)
Voltage 380V/50Hz
