Edge Board Making Machine

  • Shenxi

Product Description

Product Description

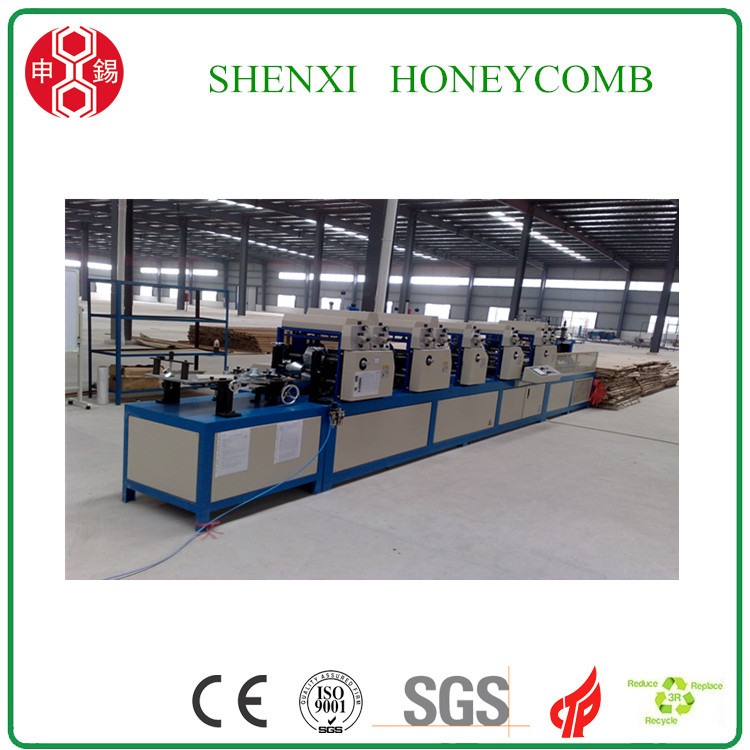

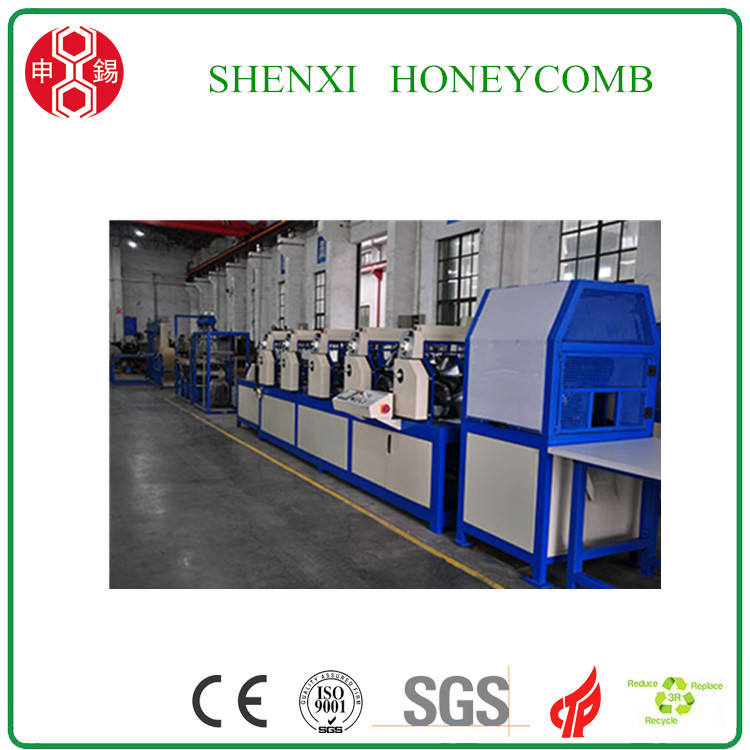

Edge board machine is used to make the L shape /U shape and flat-board edge protector in high speed. This machines consists of paper reel stands (11 layers, 1 layer face paper, 10 layers of core paper), gluing unit, Edge wrapping unit, Pressing unit, Cutting unit and output conveyor.

Technical data

Dimensions for L shape 25 X 25mm up to 100 X 100mm
Dimensions for U shape Inner width 20-70 , two sides height: 20-60
Dimension for flatboard width: 40-150mm
Wall thickness L  : 2-8mm U shape: 2-6mm Flatboard: 2-8mm
Cutting length 50mm up to maximum as required
cutting precision(tolerance) + - 0.5mm
Production rate L : 0-40m/min U: 0-30m/min Flatboard: 0-35m/min
Glue applying Double face applying glue
Main power 11kw , 380V/50Hz
Weight 4.5 tons
Layout space                                     32000*800*1600mm

Edge board machine
