​What are the specifications of honeycomb panel machines?

Author:Site Editor     Publish Time: 2021-09-07      Origin:Site

In recent years, China's timber imports have shown an upward trend, second only to oil and steel, showing the lack of timber. Faced with such resource and energy pressures, Honeycomb panel is a new eco-friendly building material that is widely used in everyday life. Honeycomb panel machines are also available in a variety of sizes.



Here is the content list:

What is the structure of the honeycomb panel machine?

What is the honeycomb panel machine used for?



What is the structure of the honeycomb panel machine?

The honeycomb panel machine consists of 10 components.

(1) Paper feeder

The structure is double rotary shafts with four arms, support two paper mill rolls on both arms at the same time;

Effective width:800-2000mm; max. paper roll diameter: Φ1400mm;

(2) Core expanding platform

Honeycomb input width (before expanding): 1500-2150mm;

(3) Core conveying expand drying unit

Heating method: steam heating/electric heating, Electric pipe heating into 2 groups;

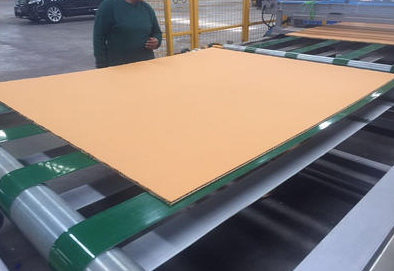

Honeycomb panel machines

(4) Gluing machine

1.Glue applicator roller &doctor roller: the surface is wrapped with rubber, even glue supply and durable;

2.Doctor roller: 76mm diameter, rubber roller. Anti-rust;


(5) Green Belt Press

Edge of Conveying belt (Rubber belt) to ensure the paper board pass through the middle of this unit, press paperboard evenly while conveying;Speed of Conveyor belt is controlled by frequency inverter;


(6) Hotboard

1. Hot board, 25mm thickness aluminum panel on both top and bottom;

2. Temp.: ~ 120-celsius degree, controlled automatically


(7) Paperboard oven

1. Heating method: Steam heating/ electric heating, heating box fixed outside oven, centrifugal fan pump in the hot air into the oven, hot air circulation;

2.  Heating power(electric heating):36kw


(8) Cold press

1.Cooling method:8 sets of axial fans force to cool the fresh paperboard oven, increase its hardness;

2.length:9000mm


(9) Trimming& waste collecting system

Including one slitting machine, one chopping blower and necessary pipes;


(10) Paperboard cross-cut

1.Cutting length controlled by the encoder (length can be set on the touch screen), length cutting: 500-4000mm;

2.Max. Cutting height: 150mm


(11) Power Supply box

1.Building frames on top of the machine, to fix the tables and trunking and Cables; wiring clean and safe is reasonable, maintenance is convenient;

2.Touch screen operation displays and setting, PLC system control;

3.Electric control components all adopt schneideromron and delta sets of products



What is the honeycomb panel machine used for?

Obviously, the honeycomb panel machine is used for producing honeycomb panels. The honeycomb panel has typically 5 layers: Skin, adhesive, honeycomb core, adhesive, skin. Materials with high tensile and compression strength are best suited to being skins, i.e. aluminum, steel, fiberglass. Adhesive varies widely by application: high strength, high temp, low temp, etc. The aluminum honeycomb panel is a honeycomb sandwich plate with a honeycomb structure as its core, which is inspired by the natural hexagonal honeycomb. The unique honeycomb structure makes its weight lighter than other materials in the same volume, and the stiffness and overall stability are very good as well, what’s more, the aluminum honeycomb panel also has the advantages of sound insulation and heat insulation. The aluminum alloys are neither radioactive nor volatile. They can be completely recycled and reused, then saving resources and energy, and minimizing environmental pollution. This makes honeycomb aluminum panels used as a new energy-saving, environmentally friendly and healthy material.



As the economy continues to grow and the population continues to increase in China, the shortage of energy and timber resources in China has become more prominent, and environmental pressure is increasing. In the face of such severe pressures on energy, resources and the environment, it is the main task to reduce consumption and environmental disruption as much as possible. The advent of honeycomb material has just alleviated these problems. This is a new type of material. It has light weight, high strength and high rigidity. It has the functions of buffering, heat insulation and sound insulation. It is used in construction, furniture manufacturing, packaging, transportation and recyclable. Honeycomb machines are used to produce such products.
