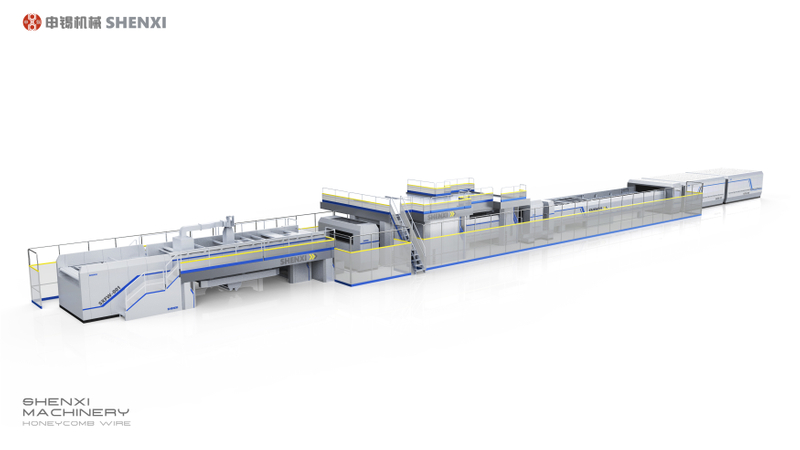

Honeycomb Core & Board Production Line

Description
This line combines the honeycomb core and panel lamination line in one line, which means input raw paper roll and output is the final honeycomb panels. it can save 2 operators and less storage for honeycomb core. But it has higher requirements on buildings, at least 90m in length.
Availability:
Quantity:
  • HCM-2000&HF(B)1600 HCM-2300&HF(B)1800

  • 申锡

Product Description

3. honeycomb core & panel lamination line (combo line)

This line combines the honeycomb core and panel lamination line in one line,  which means input raw paper roll and output is the final honeycomb panels.  it can save 2 operators and less storage for honeycomb core. But it has higher requirements on buildings, at least 90m in length.

该生产线将蜂窝纸芯和纸板复合生产线合二为一,即输入原纸卷,输出最终蜂窝板。蜂窝芯可节省2个操作人员,减少存储空间。但它对建筑物的要求更高,长度至少为90米。



Honeycomb Paper Board Project(整线参数)

No.

Item项目

Spec. 规格

Remarks 备注


Model

型号

HCM-2000&HF(B)-1600

HCM-2300&HF(B)-1800


1

Machine take space

设备占用空间

90X6m,   in one line 一条线


2

Factory area

厂房面积

More than 3000m2

大于


3

Installation power

装机功率

电加热方式electric heating mode:180kw

蒸汽加热方式steam heating mode: 100 Kw


4

Steam requirement

蒸汽用量

500kg/h, 0.4-0.6MPa

if choosing steam heating

如果选择蒸汽加热

5

Actural power consumption

实际耗电量

电加热Heating by electric :

100KW/H

蒸汽Steam: 300-400kg/h


6

Heating  choices

加热选择

Steam&electric

蒸汽&电加热


7

Production capacity

生产能力

4000-8000m2/ 10 hours

depends on cell size, height

取决于蜂窝孔径和高度

8

Operating persons

操作人员

4-6


9

Production speed for fillers

生产速度

10-25m/min.

Depends on height

取决于高度

10

Honeycomb board thickness

蜂窝板厚度

6-100mm


11

Honeycomb board width

蜂窝板宽度

最大Max. 1600mm/1800mm


12

Container needed for loading

集装箱需求

7 pcs 40’ containers

Only for standard honeycomb core+ lamination line

仅适用标准纸芯机和纸板线

13

Paper used

纸张使用


芯纸Core: 90-200gsm medium paper;

面纸face: 100-600gsm liner
