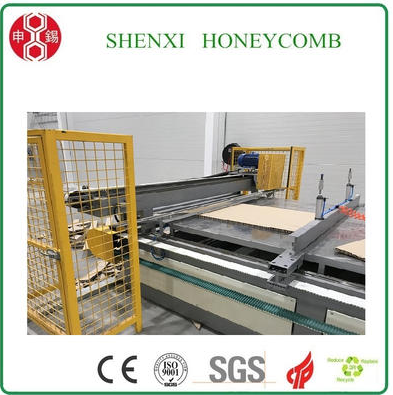

​Can the honeycomb panel slitting machines choose the cutting size?

In recent years, confronted with resource and energy pressures, honeycomb materials are very good alternative materials. In the future, there will be more and more honeycomb panel processing plants and finished products of honeycomb panel processing enterprises, the demand for will be more and more.

As a result, whether the honeycomb panel slitting machines can choose the cutting size is of great significance.

Here is the content list:

What is the honeycomb panel slitting machines'Operation requirements?

What are the operating procedures of the machine？

What is the honeycomb panel slitting machines'Operation requirements?

The slitting machine should cut the whole roll or sheet of raw materials with a fixed length. Fixed length slitting control is divided into static and dynamic slitting. The most important performance index of fixed length slitting is slitting accuracy and good consistency of finished product length. The cutting length can be set continuously. If the actual cutting length has an error, it is easy to calibrate by setting parameters。

What are the operating procedures of the machine？

Although we have a honeycomb panel slitting machine, how to comply with the operating procedures of the use of it is more critical.

1、Power on

Turn on the electrical isolating switch (set in front of the electrical control cabinet). Turn on the power switch of the hydraulic system. Open the pneumatic shut-off valve (set on the intake pipe under the pneumatic control cabinet).

2、Set control

Set the slitting menu according to the film type, thickness, length and width arranged in the slitting plan. Set the winding length and width of the corresponding film. Select the corresponding winding station, adjust the pressure roller arm and pressure roller, and install the honeycomb panel of corresponding specifications.

3、Feeding, threading and splicing

Feeding: according to the requirements of the slitting plan, in accordance with the operating procedures of the train.

Film piercing: when there is no film on the slitter, film piercing must be carried out.

Film splicing: when there is a film on the slitter and the coil changing joint, use the vacuum film splicing table to start the film splicing table to the working position.

4、Start up and run

Change the specification, put the honeycomb panel on the inner and outer take-up arms, and inform all personnel to leave the machine for operation when the pressure roller is in the ready state.

5、Slitting control

In the process of slitting operation, carefully monitor and observe the slitting effect, and properly adjust and control the slitting speed, unwinding tension, contact pressure, arc roll, edge material traction roll, guide edge, etc.

6、Material receiving

When the machine stops running after the inner and outer ends winding, use the film unloading button to put the film on the prepared film unloading trolley, cut the film and paste the film coil with sealing glue.

7、Stop

When the film coil runs to the set length, the equipment stops automatically.

8、Precautions

Ensure that the voltage, current and hydraulic equivalent are correct and stable before startup.

Before the equipment is ready for operation, all personnel must be informed to leave the equipment to ensure personal safety. When the slitter is in operation, do not touch the film roll or roll core in operation with hands, so as to avoid personal injury caused by hand rolling.

In the process of operation, do not scratch or cut the roller core with a knife or hard object.

In the face of severe pressures on energy, resources and the environment, it is the main task to reduce consumption and environmental disruption as much as possible. The advent of honeycomb material has just alleviated these problems.
